AC DC Endschalter mechanisch Endstop Microswitch V-152 1C25 15A 250V

AC DC Endschalter mechanisch Endstop Microswitch V-152 1C25 15A 250V

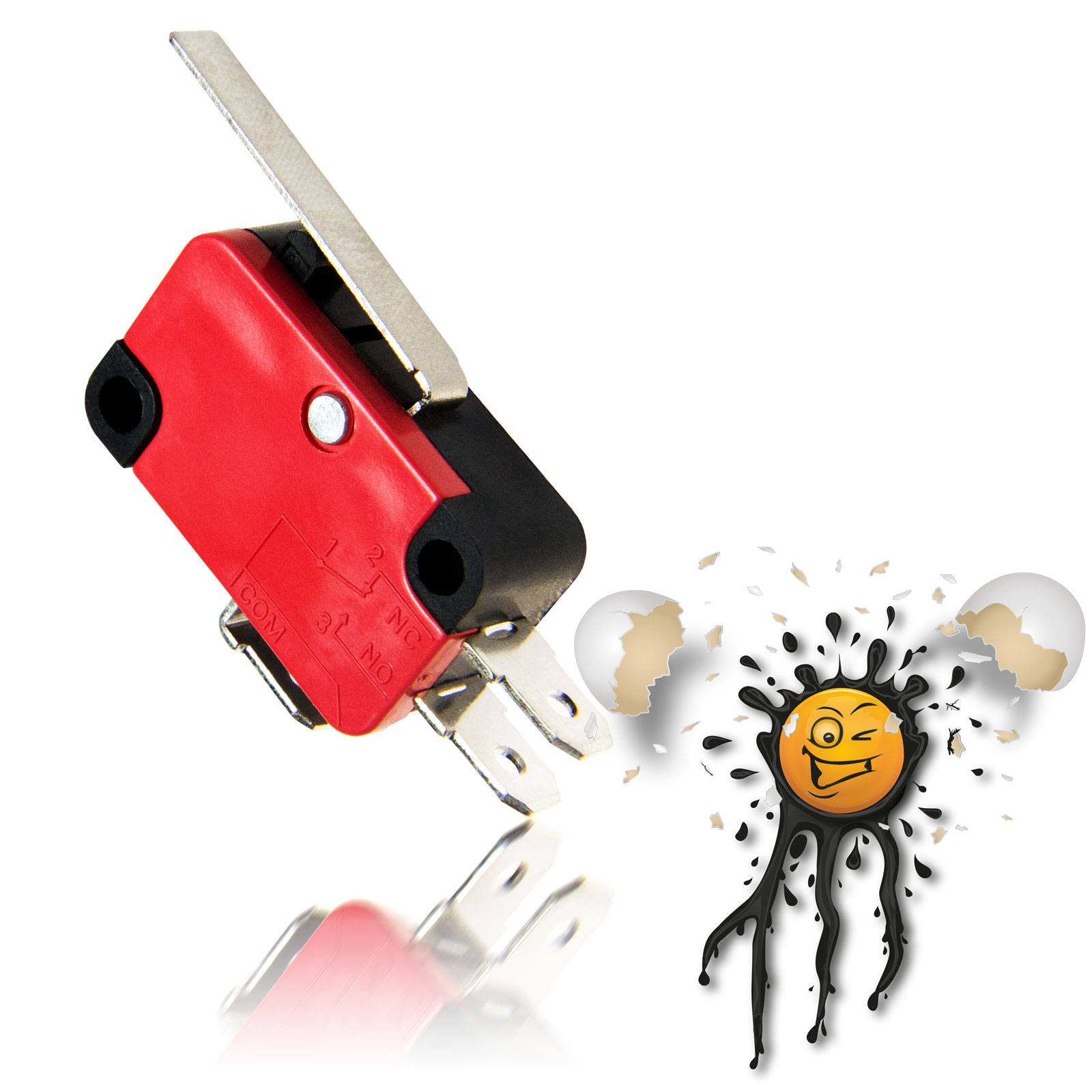

Mechanically Endstop Microswitch V152 © androegg

• V-152-1C25 mit Hebel mittel

mechanischer Endschalter V-15

Der Endschalter verfügt über 3 Quick-Connect 6,3mm Anschlüsse

• COM / Eingang
• NO / Normally Open / Schlieser
• NC / Normally Closed / Öffner

• V-152-1C25 with Hinge lever regular length

Mechanically Endstop Switch

The Endstop Microswitch got 3 6.3mm Quick-Connect Terminals

• COM / Input
• NO / Normally Open
• NC / Normally Closed

V-15 Mechanically Endstop Switch Features:

• Contact Type: 6.3mm Quick-connect terminals SPDT 1NO 1NC
• Actuator Type: Push Button
• max. Power Current / Voltage:
  • max. Overload 15A 250VAC
  • 1/2HP 125V/250VAC
  • 0.6A 125VDC
  • 0.3A 250VDC
• Maximum Operating Force: 1.96N
• Mounting: M3 screws / Bolt
• IP protection class: IP 40
• Operating Temperature: from -25°C up to +85°C
• Average Lifetime: IP protection class
