ACS758 100A AC DC Strom Current Hall Sensor

ACS758 100A AC DC Strom Current Hall Sensor analog VCC 3-5,5V ADC Arduino ESP8266

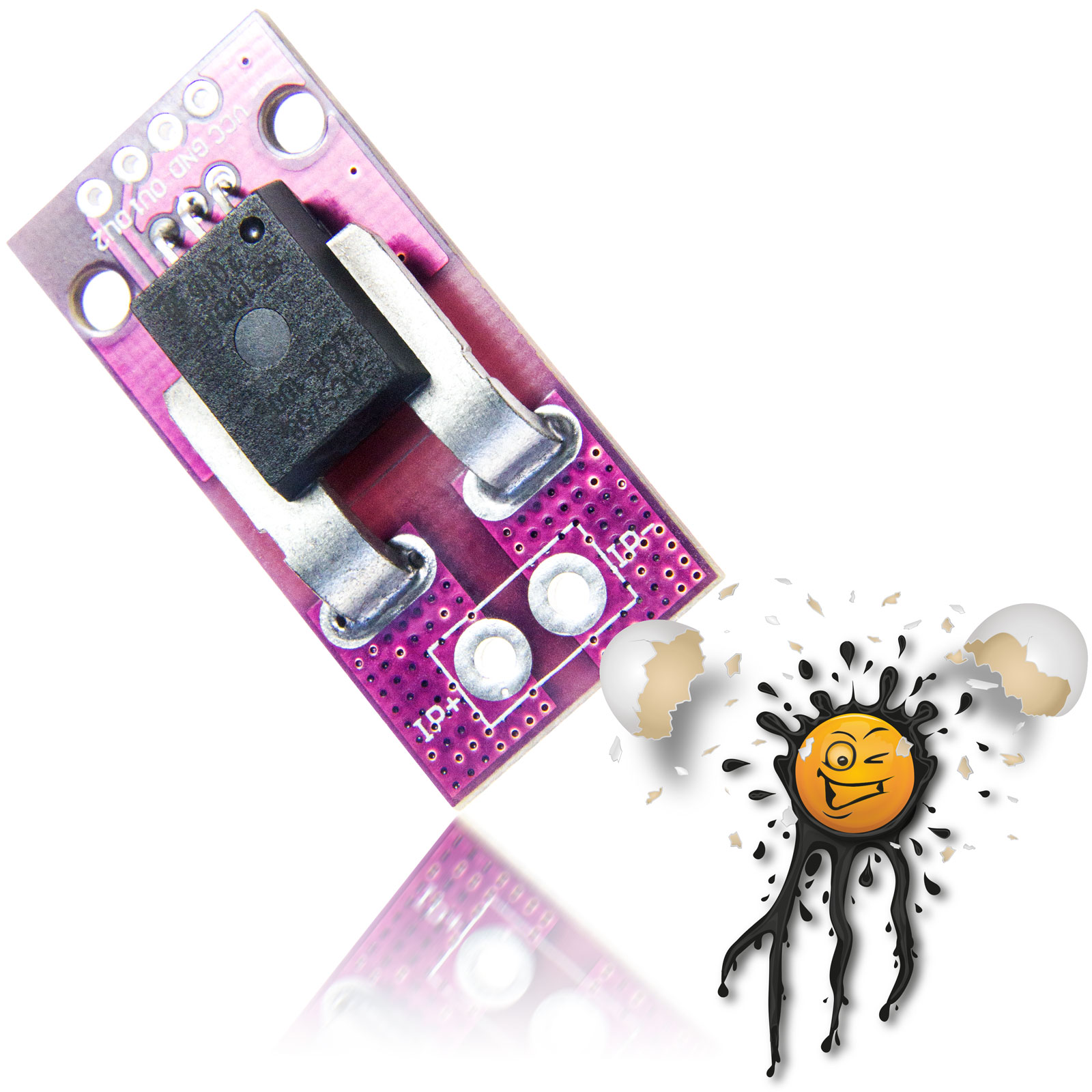

ACS758 High Current Sensor © androegg

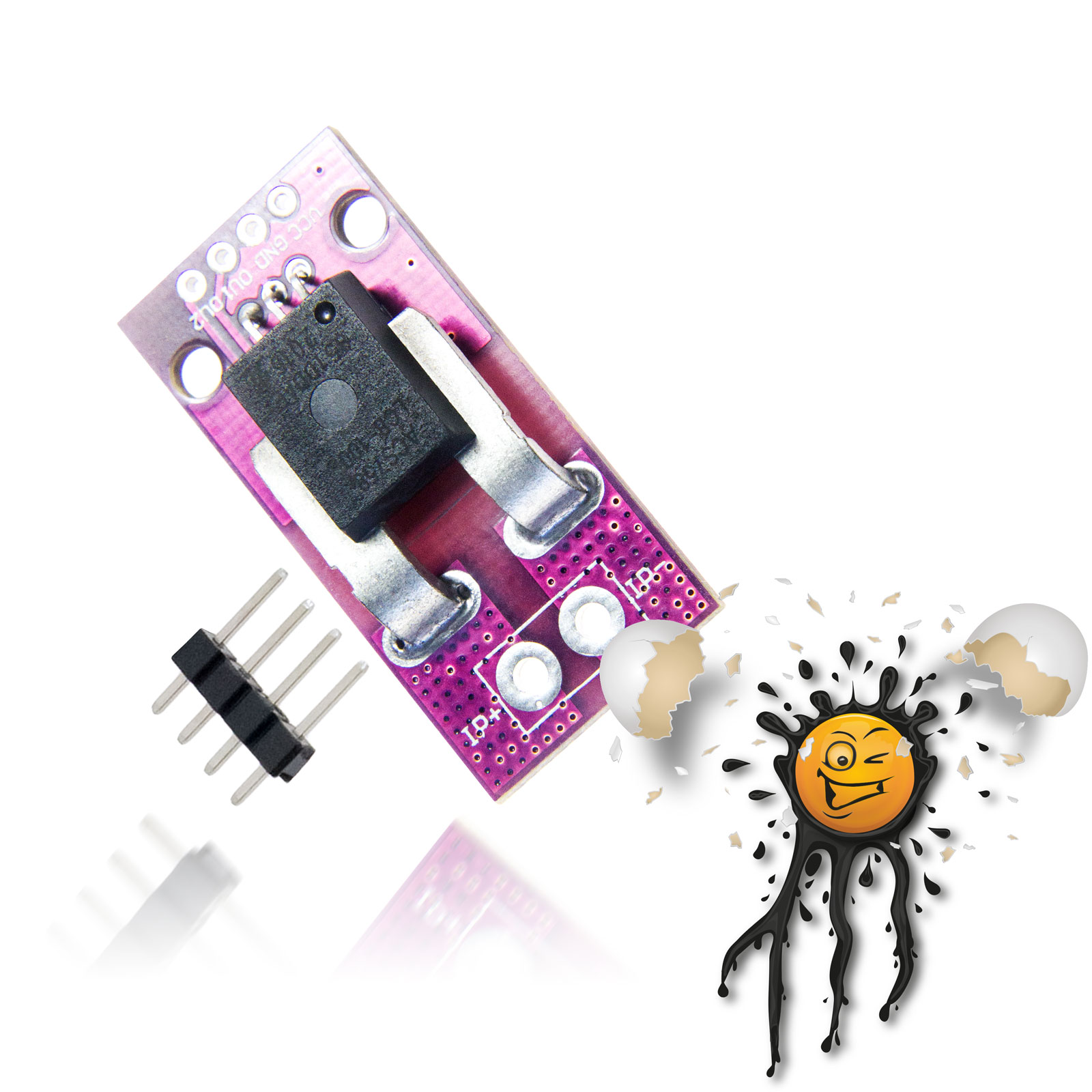

ACS758 High Current Sensor Module © androegg

Analoger Stromsensor basierend auf den Allegro™ ACS758 PPF.

Der ACS758 erlaubt Versorgungsspannungen von

• 3-5,5V (IC)
• 3,3-5V (Modul)

Der ACS758 ist wie folgt verfügbar

• ACS758LCB-100B-PFF-T Modul
• Modul für bis zu 100A
• Selektivität 20mV/A

ACS758 Strom Sensor

Analogue Current Sensor based Allegro™ ACS758.

The ACS758 supports supply Voltage

• 3-5,5V (IC)
• 3,3-5V (Modul)

The ACS758 is available

• ACS758LCB-100B-PFF-T Module
• Module for up to 100A
• Sensitivity 20mV/A

ACS758 High Current Sensor

ACS758 Current Sensor Features:

• Supply Voltage
  • 3A – 5.5V IC
  • 3.3V-5V Module
• Supply Current 10-13.5 mA
• Rise Time 3 µs
• 3 μs output rise time in response to step input current
• Frequency Bandwidth 120kHz
• Power-On Time 10µs
• Operating Ambient Temperature –40 to 85 ºC
• Output voltage proportional to AC or DC currents
• Low-noise analog signal path
• Nearly zero magnetic hysteresis
