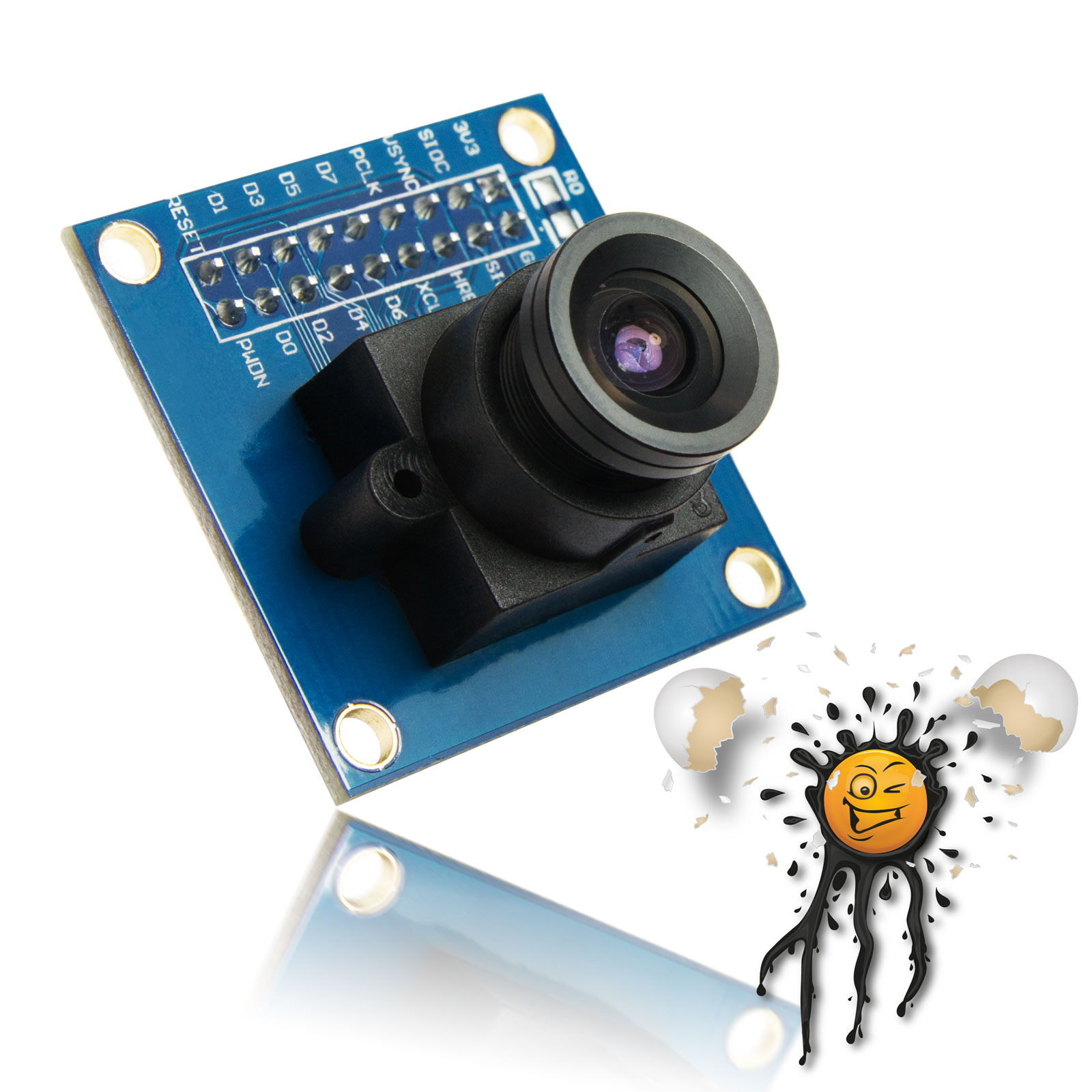

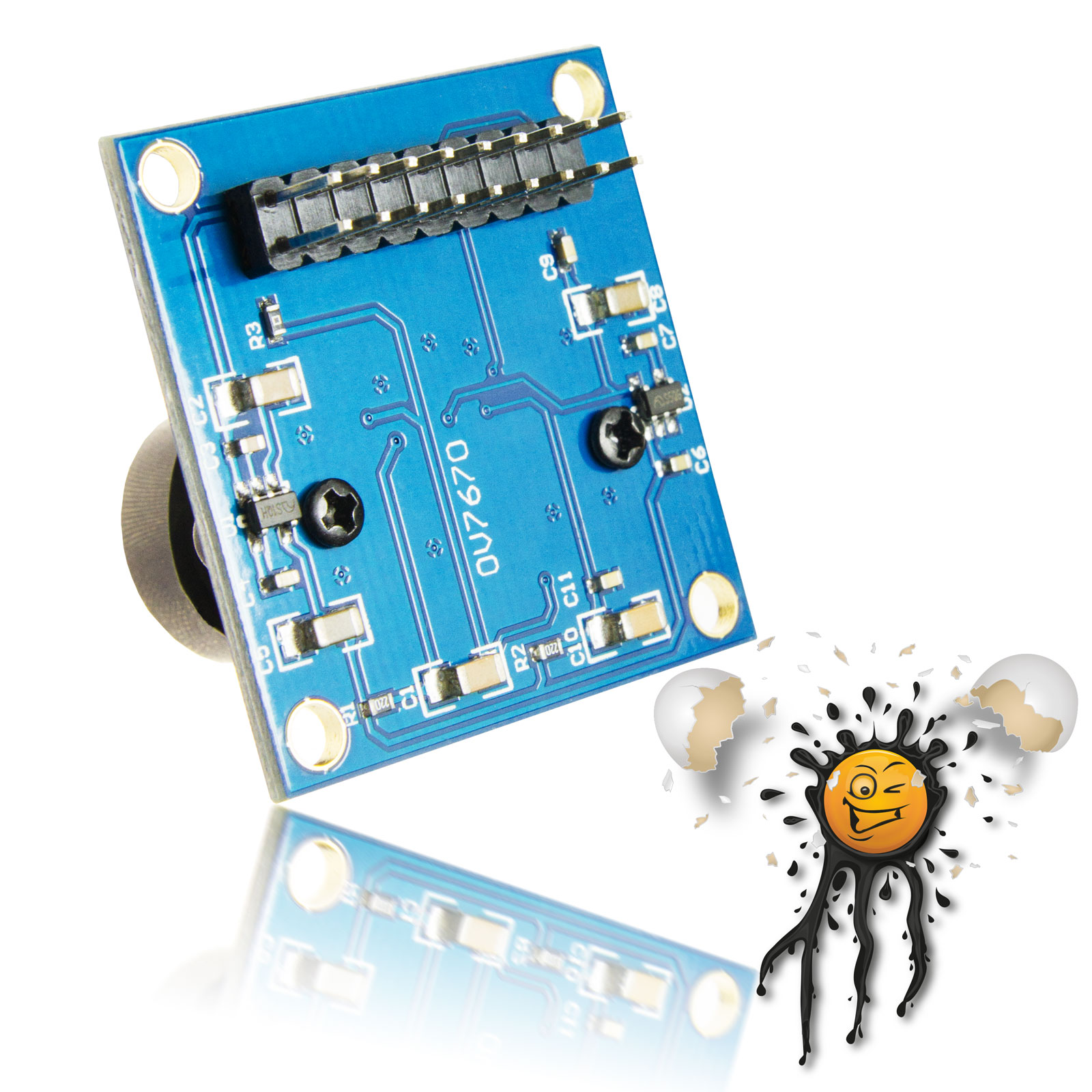

ESP8266 ESP32 Arduino Camera Modul OV7670 © androegg

IoT Camera 640 x 480 3Mbits Camera Module © androegg

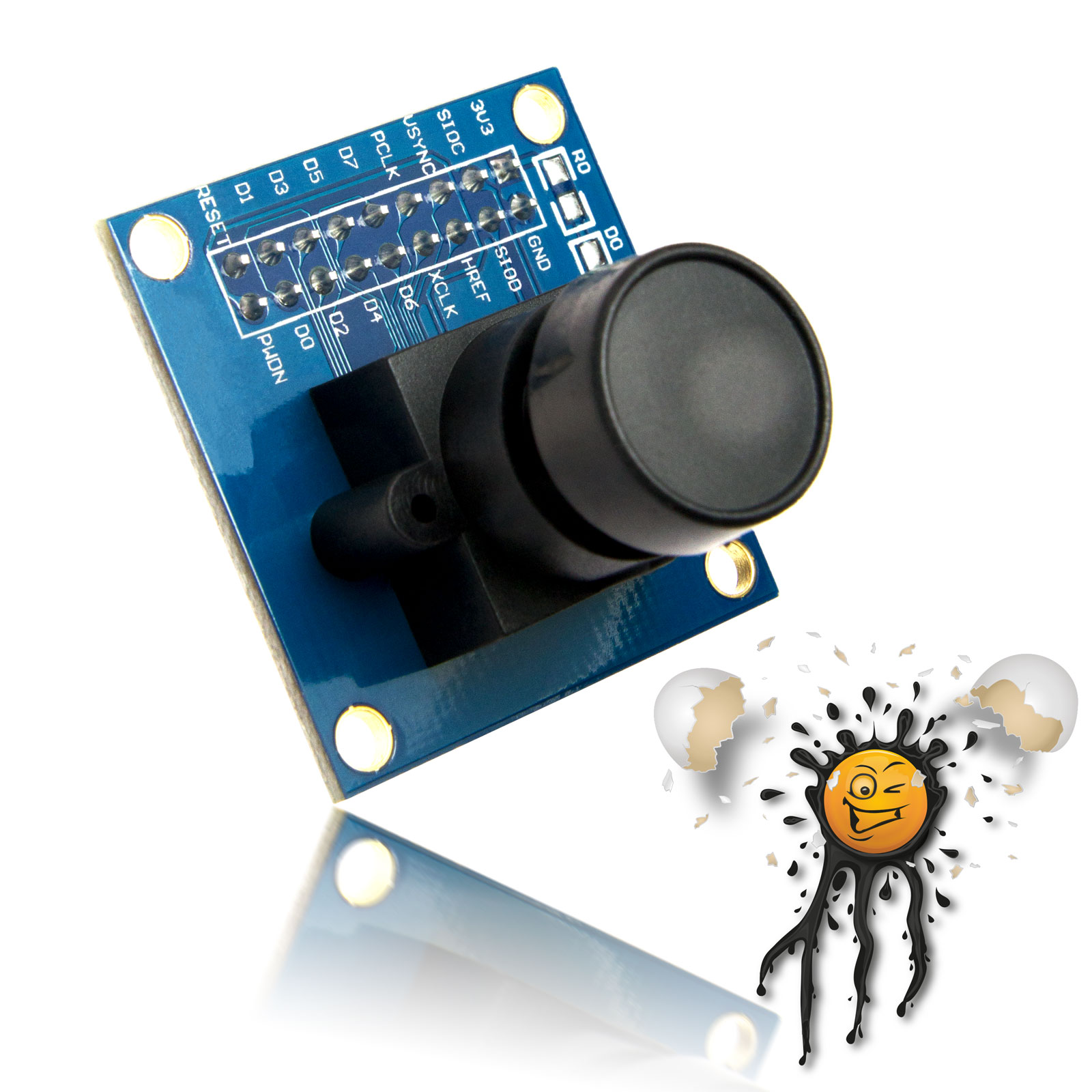

ESP Arduino Camera Module Pinout © androegg

Das CMOS OV7670 Kamera Modul eignet sich für die Bilderfassung beispielsweise in Kombination mit

• ESP8266
• ESP32
• WeMos ESP
• Arduino
• STM32
• uvm.

Das OV7670 Modul unterstützt einen VGA Mode mit einer Auflösung von 640 x 480 pixel und einer Framerate (fps) von bis zu 30 Bildern pro Sekunde.

Mittels dem SCCB (I2C) Schnittstelle können Parameter wie

• Helligkeit
• Gamma
• Weißabgleich
• Sättigung
• Farbton
• usw.angepasst werden.

• 0,3 Megapixe IoT Kamera Modul



  Produkt Information:



  Die Spannungsversorgung erfolgt mittels 3,3V.

The CMOS OV7670 Camera Module is optimized in combination with

• ESP8266
• ESP32
• WeMos ESP
• Arduino
• STM32
• and much more

The OV7670 Module supports VGA Mode with 640 x 480 px. resolution with a framerate up to 30 pictures per second (fps).

Paramteres such as

• exposure
• gamma
• white balance
• color
  saturation
• hue
• more

can be controled over the SCCB (I2C) interface.

0.3 Megapixel IoT Camera Module

Product Information:

The OV7670 Camera Module requires 3.3V power supply.

OV7670 Camera Module Features:

• Optical size 1/6 inch
• Resolution 640×480 VGA
• Onboard regulator, only single 3.3V supply needed
• Standard 0.1inch (2.54mm) pin pitch header connector
• Mounted with high quality F1.8 / 6mm lens
• Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) formats
• High sensitivity for low-light operation
• Low operating voltage for embedded portable apps
• Standard SCCB interface compatible with I2C interface
• Supports image sizes: VGA, CIF, and any size scaling down from CIF to 40×30
• VarioPixel® method for sub-sampling
• Automatic image control functions including: Automatic
• Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic
• Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
• Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
• ISP includes noise reduction and defect correction
• Supports LED and flash strobe mode
• Supports scaling
• Lens shading correction
• Flicker (50/60 Hz) auto detection
• Saturation level auto adjust (UV adjust)
• Edge enhancement level auto adjust
• De-noise level auto adjust
