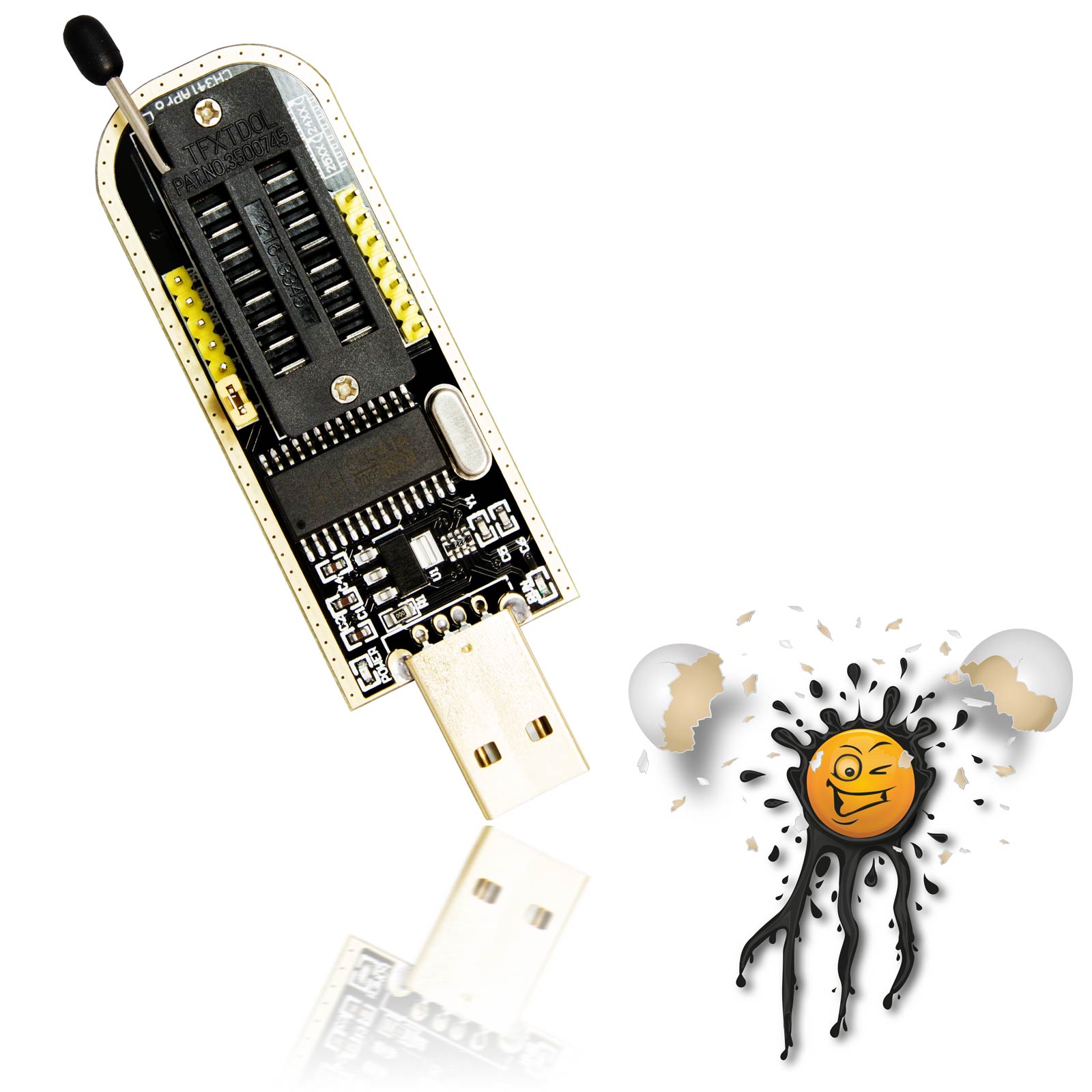

CH341A USB Programmer

USB Programmer CH341A EEPROM Nand SPI Flash UART I2C Win OSX Linux ESP8266 Arduino

CH341A Windows Linux OS X USB Programmer © androegg

CH341A Windows Linux OS X USB Programmer © androegg

CH341A PCB Adater incl. Pin Header © androegg

Der CH341A Programmer basiert auf dem CH341A und unterstützt

• Windows
• OS X
• Linux

Betriebssysteme. Neben den bekannten Windows basierenden Programmer Software Tools kann der CH341A Programmer mit Hilfe von libusb auch auf UNIX basierenden System betrieben werden. Für Linux und OS X basierende Systeme gibt es hier beisspielsweise

• ch341prog
• ch341eepromtool

Der CH341A Programmer unterstützt

• UART
• standard parallel
• I2C
• SPI

Protokolle.

Der CH341A Programmer unterstütz eine Vielzahl von verschiedenen Chips z.B.:

•  von AMIC: A25L05P, A25L10P, A25L20P, A25L40P, A25L80P, A25L16P
• von ATMEL: AT25DF041A, AT25DF321, AT25F004, AT25F512A, AT25F2048, AT25F4096, AT25F1024A, AT25FS010, AT25FS040, AT26DF081A, AT26DF161A, AT26DF321, AT26F004
• von EON: EN25B05, EN25B05, EN25P0, EN25B0, EN25P0, EN25P0, EN25P0, EN25P0, EN25P0, EN25P0
• von Excel Semiconductor Inc.
  ES25P10, ES25P20, ES25P40, ES25P80, ES25P16, ES25P32
• von ST: M25P05, M25P03, M25P03, M25P03, M25P03, M25P
• von MXIC: MX25L5005, MX25L2005, MX25L2005, MX25L6005, MX25L6605, MX25L6405, MX25L6405, MX25L6405, MX25L6405, MX25L6405
• von NexFlash: NX25P80, NX25P16, NX25P32
• von Chingis Technology Corporation: Pm25LV512, Pm25LV010, Pm25LV020, Pm25LV040, Pm25LV080, Pm25LV01, Pm25LV032, Pm25LV064
• von Saifun Halbleiter: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320
• von WINBOND:
  W25P10, W25P20, W25X02, W25X, W25X, W25X, W25X, W25X, W25X, W25X, W25X, W25X, W25X, W25X, W25
• und viele mehr

The CH341A Programmer is based on the CH341A and supports

• Windows
• OS X
• Linux

Operating System. Besides the Windows based programmer tools in combination with libusb the CH341A Programmer supports also UNIX based OS.

For Linux and OS X are also freeware available, for example

• ch341prog
• ch341eepromtool

The CH341A supports

• UART
• standard parallel
• I2C
• SPI

protocols.

The CH341A Programmer supports a wide range of Chips, for example:

•  from AMIC: A25L05P, A25L10P, A25L20P, A25L40P, A25L80P, A25L16P
• from ATMEL: AT25DF041A, AT25DF321, AT25F004, AT25F512A, AT25F2048, AT25F4096, AT25F1024A, AT25FS010, AT25FS040, AT26DF081A, AT26DF161A, AT26DF321, AT26F004
• from EON: EN25B05, EN25B05, EN25P0, EN25B0, EN25P0, EN25P0, EN25P0, EN25P0, EN25P0, EN25P0
• from Excel Semiconductor Inc.
  ES25P10, ES25P20, ES25P40, ES25P80, ES25P16, ES25P32
• von ST: M25P05, M25P03, M25P03, M25P03, M25P03, M25P
• from MXIC: MX25L5005, MX25L2005, MX25L2005, MX25L6005, MX25L6605, MX25L6405, MX25L6405, MX25L6405, MX25L6405, MX25L6405
• from NexFlash: NX25P80, NX25P16, NX25P32
• from Chingis Technology Corporation: Pm25LV512, Pm25LV010, Pm25LV020, Pm25LV040, Pm25LV080, Pm25LV01, Pm25LV032, Pm25LV064
• from Saifun Halbleiter: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320
• from WINBOND:
  W25P10, W25P20, W25X02, W25X, W25X, W25X, W25X, W25X, W25X, W25X, W25X, W25X, W25X, W25X, W25
• and much more

CH341A Programmer features:

• works on
  Windows
  Linux
  OS X
• supports a wide range of chips
• 24/ 25 indicator
• supports
  UARTstandard parallel
  I2CSPI
• incl. PCB Adapter and Pinheader (2 x 4 Pins)
