DY-5V17F DY1703A USB-Micro Audio MP3 Modul

DY-5V17F DY1703A USB-Micro Audio MP3 Modul 1x5W Class D UART Control ESP8266 ESP32 Arduino Modul Set

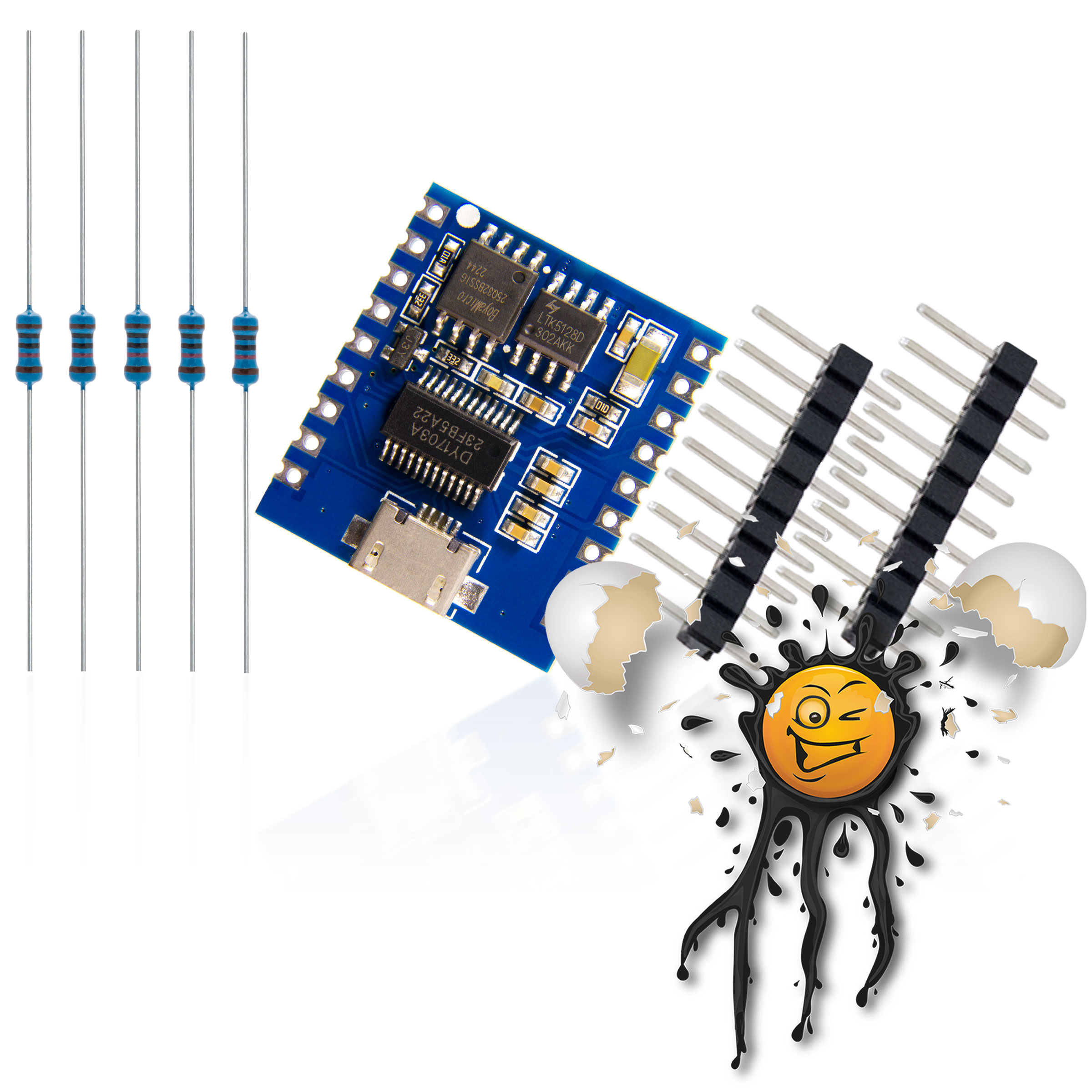

DY-5V17F DY1703A MP3 Audio Player Module UART Set 8 items © androegg

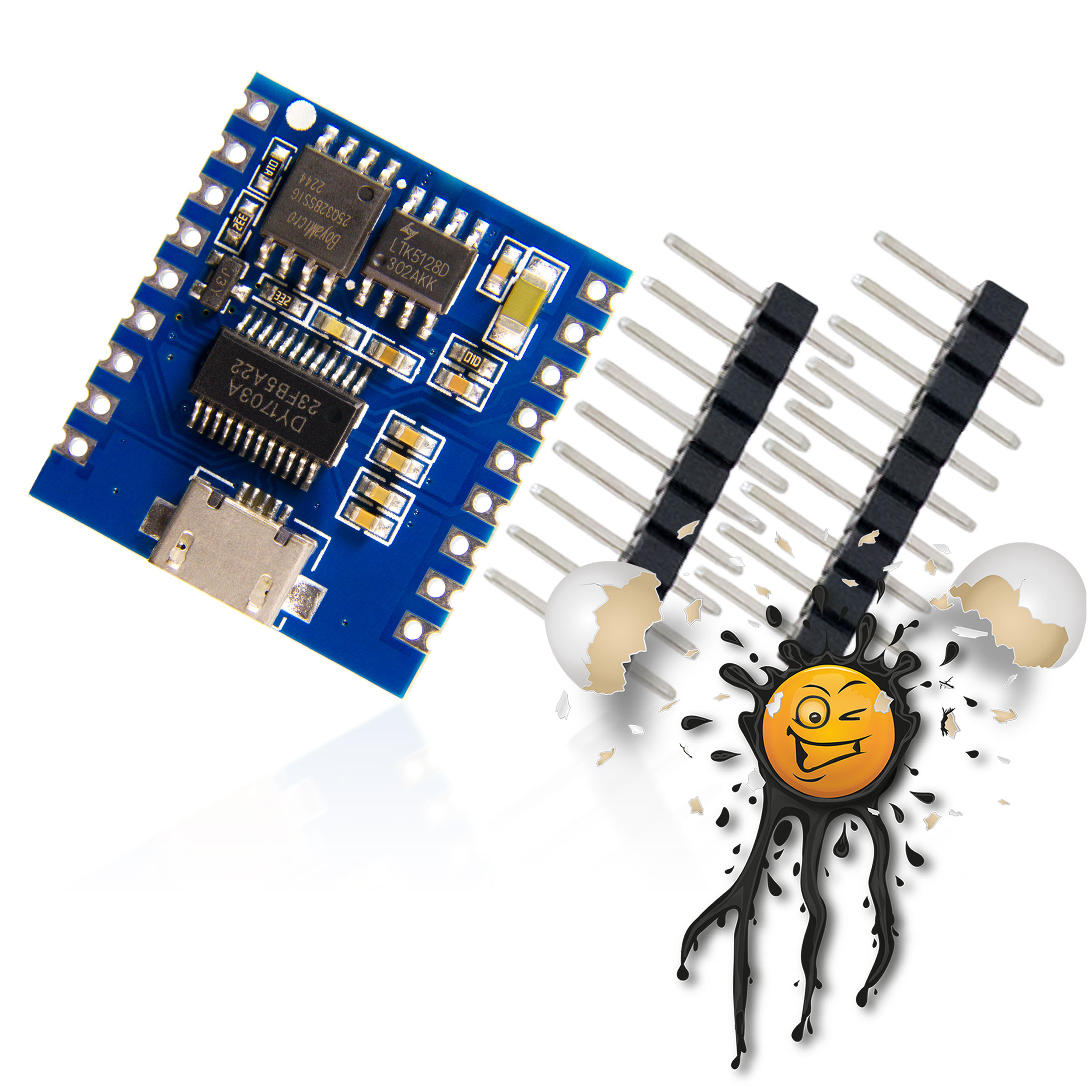

DY-5V17F DY1703A MP3 Audio Player Module Set 3 items © androegg

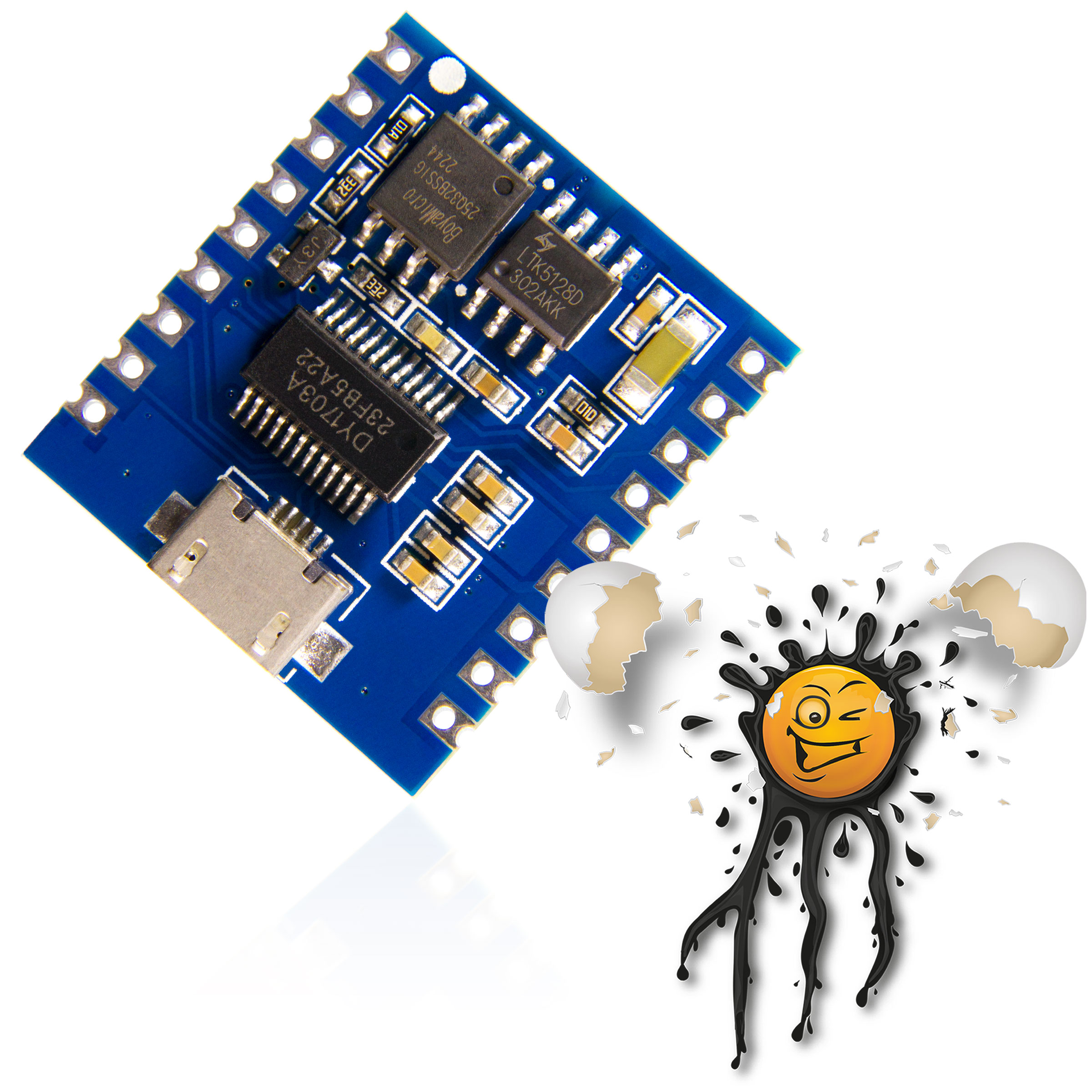

DY-5V17F DY1703A MP3 Audio Player Module © androegg

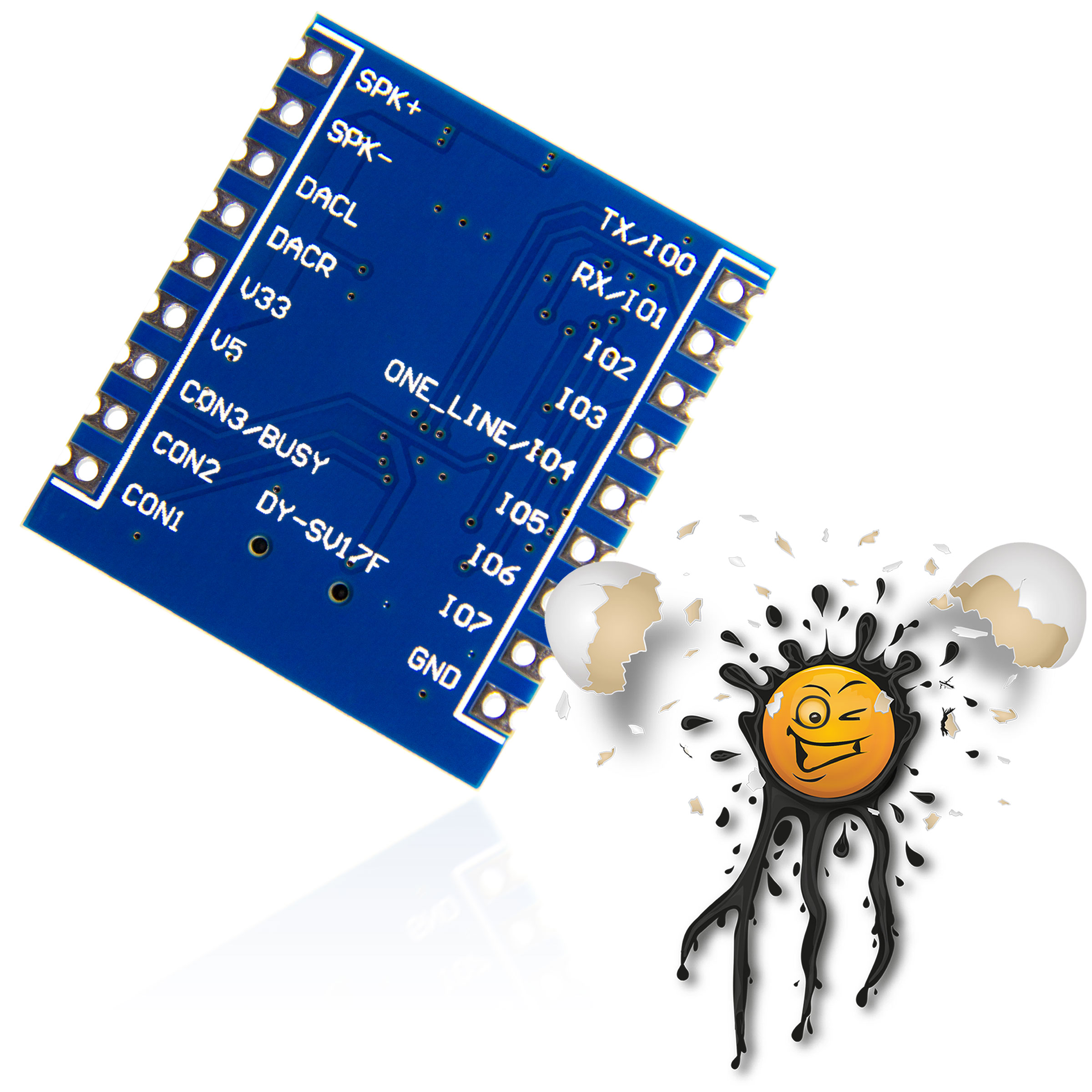

DY-5V17F DY1703A MP3 Audio Player Module Pinout © androegg

DY-SV17 MP3 Sound Recorder Player Module Schematic © androegg

Das DY-5V17F Modul Set ist wie folgt verfügbar

• Modul Set 3-teilig bestehend aus
  1 Stück DY-5V17F Modul
  2 Stück Pinleisten 9-polig

• UART Set 8-teilig bestehend aus
  1 Stück DY-5V17F Modul
  2 Stück Pinleisten 9-polig
  3 Stück 10KΩ Widerstand (CON1>GND , CON2>GND, CON3>3V3)
  2 Stück
  1KΩ Widerstand (nur bei 5V UART Level / Arduino)

Das DY-SV17 Modul verfügt über

• 32 Mbits Flash
• LTK5128D 5W Klasse D Verstärker 4-8Ω
• USB Micro Anschluß

und erlaubt die Benutzersteuerung von bis zu

• 255 Titel über Benutzereingabe / Taster
• 65535 Titel über die UART Schnittstelle

Das DY-SV17 Modul unterstützt

• 8 KHz.
• 11,025 KHz.
• 12 KHz.
• 16 KHz.
• 22.05 KHz.
• 24 KHz.
• 32 KHz.
• 44.1 KHz.
• 48 KHz.

Abtastraten

ESP8266 Arduino DY-5V17F MP3 UART Player

Der Anschluss in Kombination mit ESP32, ESP8266, Arduino oder sonstiger MCU mit UART Schnittstelle

V Pin => MCU 3,3V oder 5V VCC
GND => MCU GND
IO0/TX => MCU RX
(wenn 5V Level über 1KΩ Widerstand)
IO1/RX => MCU TX
(wenn 5V Level über 1KΩ Widerstand)
SPK+ => Lautsprecher+
SPK- =>
Lautspercher-

Ferner müssen 3 10KΩ Widerstände wie folgt gesetzt werden:

CON1 => GND
CON2 => GND
CON3 => 3.3V

The DY-5V17F module is based on the DY1703A 24-bit audio interface IC in combination with the LTK5128 5W audio amplifier IC and a 4MB SOP8 flash memory.

The DY-5V17F module set is available as follows

• Module set consisting of 3 parts
  1 piece DY-5V17F module
  2 pieces of 9-pin pin strips

• UART set 8 pieces consisting of
  1 piece DY-5V17F module
  2 pieces of 9-pin pin strips
  3 pieces 10KΩ resistor (CON1>GND, CON2>GND, CON3>3V3)
  2 pieces 1KΩ resistor (only at 5V UART level / Arduino)

The DY-SV17 module features

• 32 Mbits Flash
• LTK5128D 5W Class D Amplifier 4-8Ω
• USB micro connection

and allows user control of up to

• 255 titles via user input/button
• 65535 titles via the UART interface

The DY-SV17 Modul module supports sampling rates of

• 8 KHz.
• 11,025 KHz.
• 12 KHz.
• 16 KHz.
• 22.05 KHz.
• 24 KHz.
• 32 KHz.
• 44.1 KHz.
• 48 KHz.

ESP8266 Arduino DY-5V17F MP3 UART Player

The connection in combination with ESP32, ESP8266, Arduino or other MCU with UART interface

V Pin => MCU 3.3V or 5V VCC
GND => MCU GND
IO0/TX => MCU RX (if 5V level above 1KΩ resistor)
IO1/RX => MCU TX (if 5V level above 1KΩ resistor)
SPK+ => Speaker+
SPK- => Speaker-

Furthermore, 3 10KΩ resistors must be set as follows:

CON1 => GND
CON2 => GND
CON3 => 3.3V

DY-5V17F Module UART Command method list:

• Working Voltage: DC 3.3-5V
• UART Level: 3.3V
• Flash Size: 4MB
• Impendanz: 4-8Ω
• Baudrate: 9600 bps
• Supports up to 65535 Title / pieces thru UART
• Supports up to 255 Title / pieces thru PIN Control
• Dimensions: 26 * 23 * 4 mm
