ESP8285 ESP-M2 integr. 8Mbit Flash WIFI WLan serial Modul

ESP8285 ESP-M2 integr. 8Mbit Flash WIFI WLan serial Modul +20 dbm low power 20µA

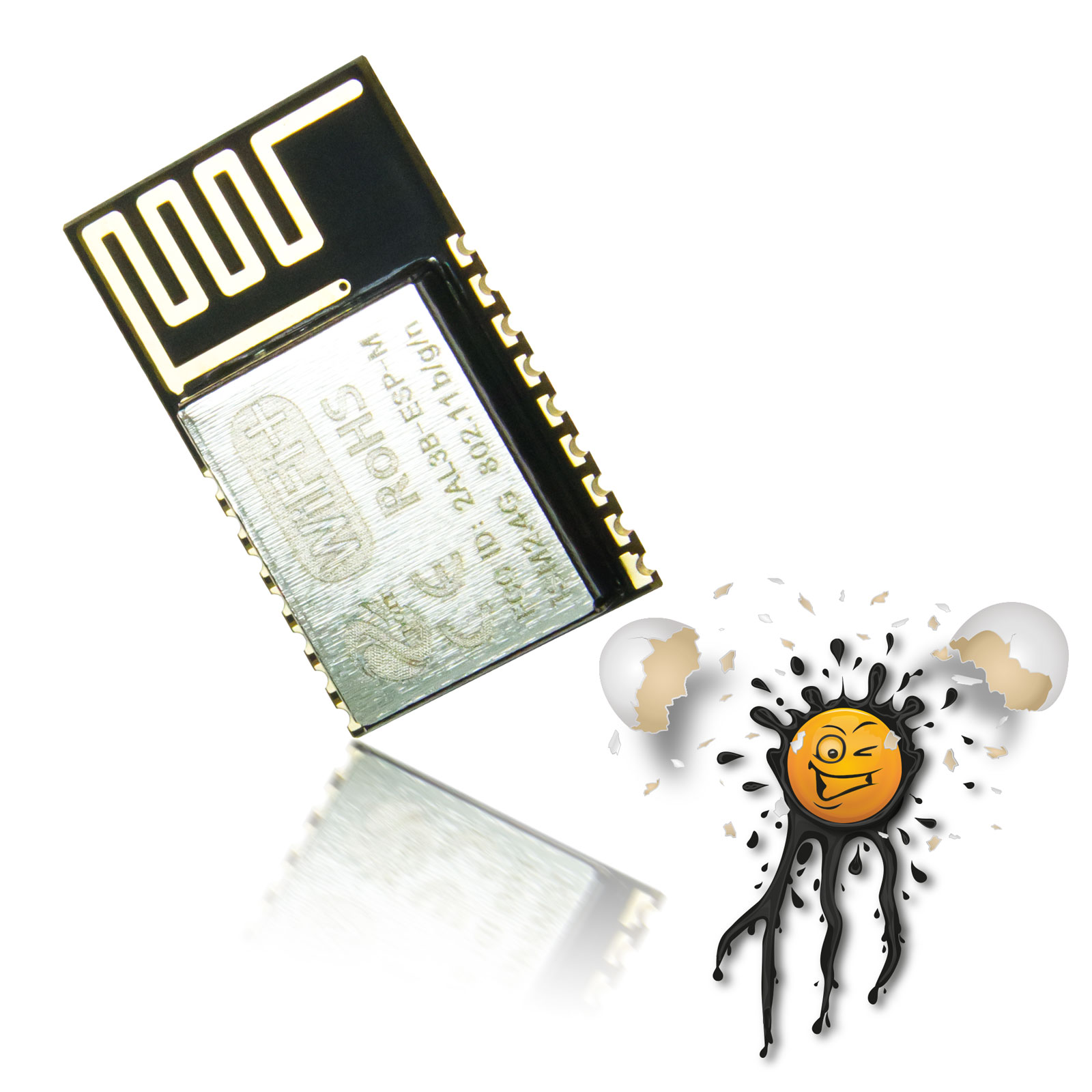

ESP8285 ESP-M2 Module © androegg

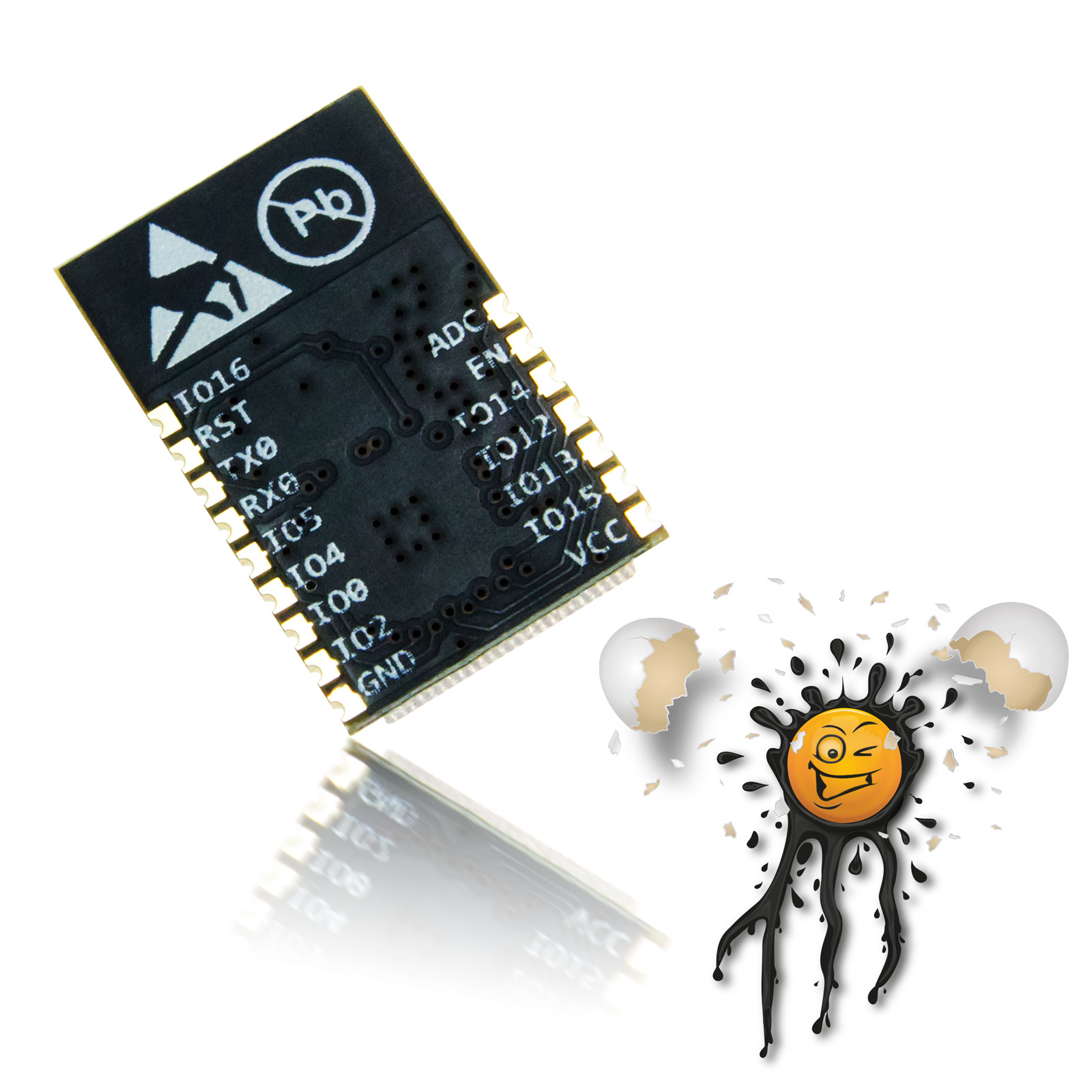

ESP8285 ESP-M2 with 1.5 mm Pitch © androegg

ESP8285 ESP-M2 mit integriertem 8Mbit Flash.

ESP8285 ESP-M2 mit 1.5 mm Picth

Bitte beachten:
ESP8285 müssen im dio Modus geflasht werden.

Der ESP8285 ESP-M2 unterstützt die ESP8266 SDK’s wie

• Espressif
• Arduino
• NodeMCU
• Micro Phyton
• Espruino

ESP8285 ESP-M2 with integrated 8 Mbit flash.

ESP8285 ESP-M2 with 1.5 mm pitch

Note:
ESP8285 flashing requires dio mode.

Der ESP8285 ESP-M2 supports the ESP8266 SDK’s for example

• Espressif
• Arduino
• NodeMCU
• Micro Phyton
• Espruino

ESP8285 ESP-M2 Features:

• CPU / MPU:
  • Frequency: 80 / 160 MHz.
  • Risk: 32-bit
  • Instruction Ram: 64 Kb
  • Data Ram: 96 Kb
• SPI Flash:
  • Flash memory: 8Mb
  • Page program: up to 256 bytes in 0.7ms (TYP)
  • Sector erase: 512Kb in 150ms
  • Chip erase: 10s
  • High Speed Clock Frequency:
  • -120MHz for fast read with 30PF load
  • -Dual I/O Data transfer up to 180Mbits/s
  • -Quad I/O Data transfer up to 360Mbits/s
  • Deep power-down: 5μA (MAX)
  • Write Cycles: > 100,000 write cycles per sector
    Data retention: > 20 Years
• 802.11 b/g/n/e/i protocol
• supports Wi-Fi Direct (P2P)
• soft-AP Integrated TCP/IP protocol stack
• integrated PCB Antenna
• +20 dBm output power in 802.11b mode
• Power down leakage current of < 5uA
• low Power consumption 25µA deep sleep
• Integrated low power 32-bit MCU
• A-MPDU & A-MSDU aggregation & 0.4μs guard interval
• Wake up and transmit packets in < 2ms
• Standby power consumption of < 1.0mW (DTIM3)
• Small form factor 20mm x 12.3mm
• 1.5mm pitch
