JDY-27 BLE Bluetooth 5.1 Modul

JDY-27 BLE Bluetooth 5.1 Modul 1,7-3,6V 2.4Ghz UART ultra low power Modul

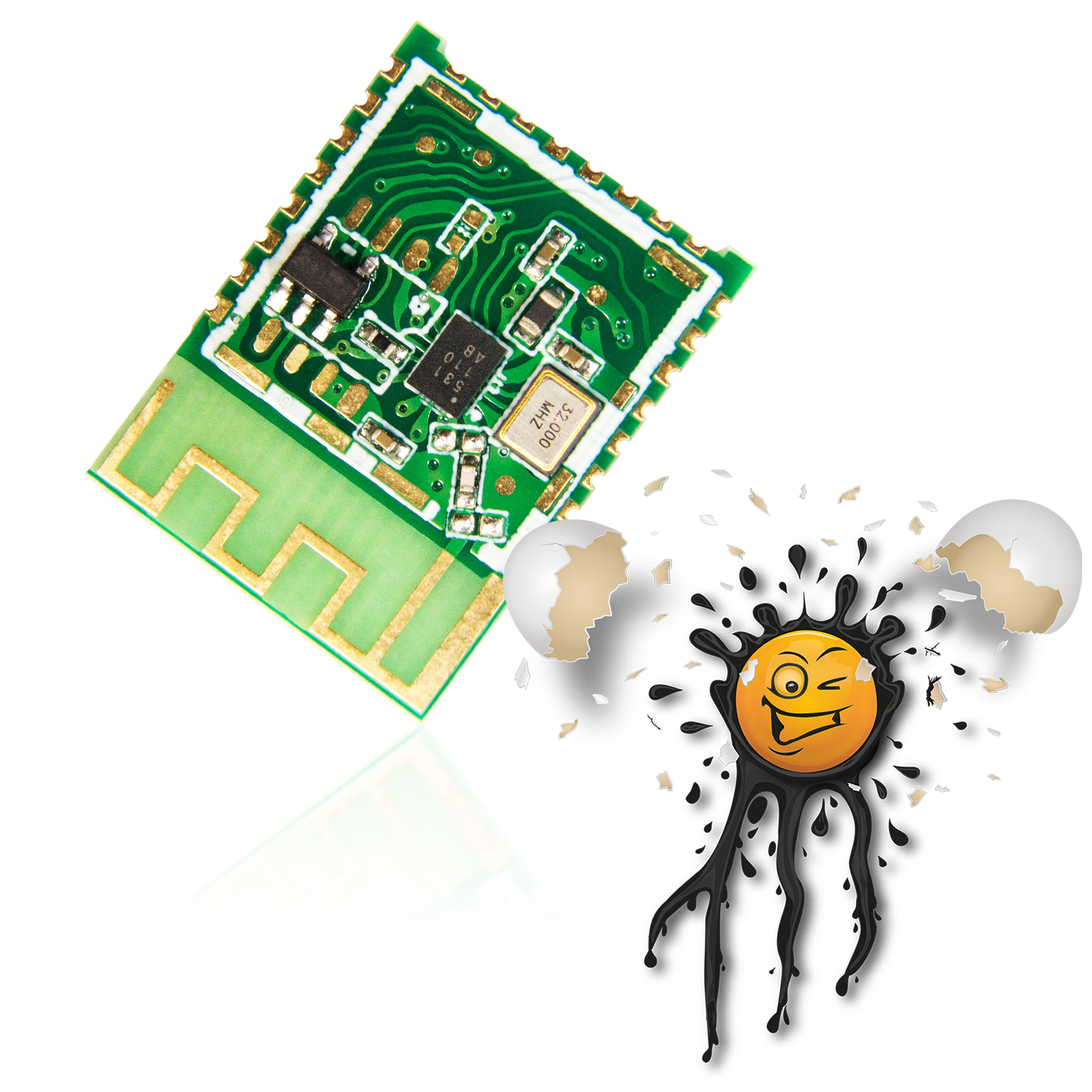

JDY-27 BLE Bluetooth 5.1 Module © androegg

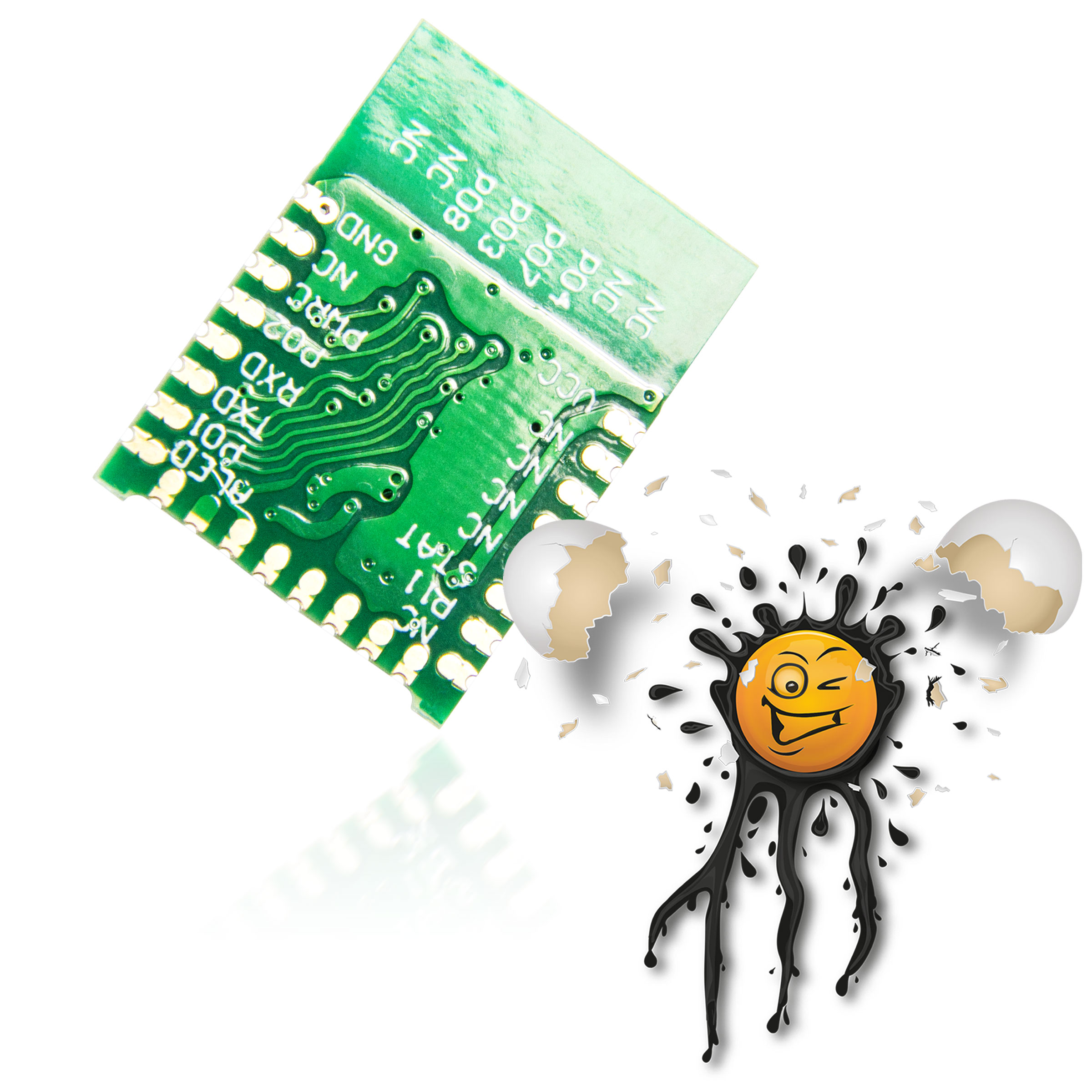

JDY-27 BLE Bluetooth 5.1 Module © androegg

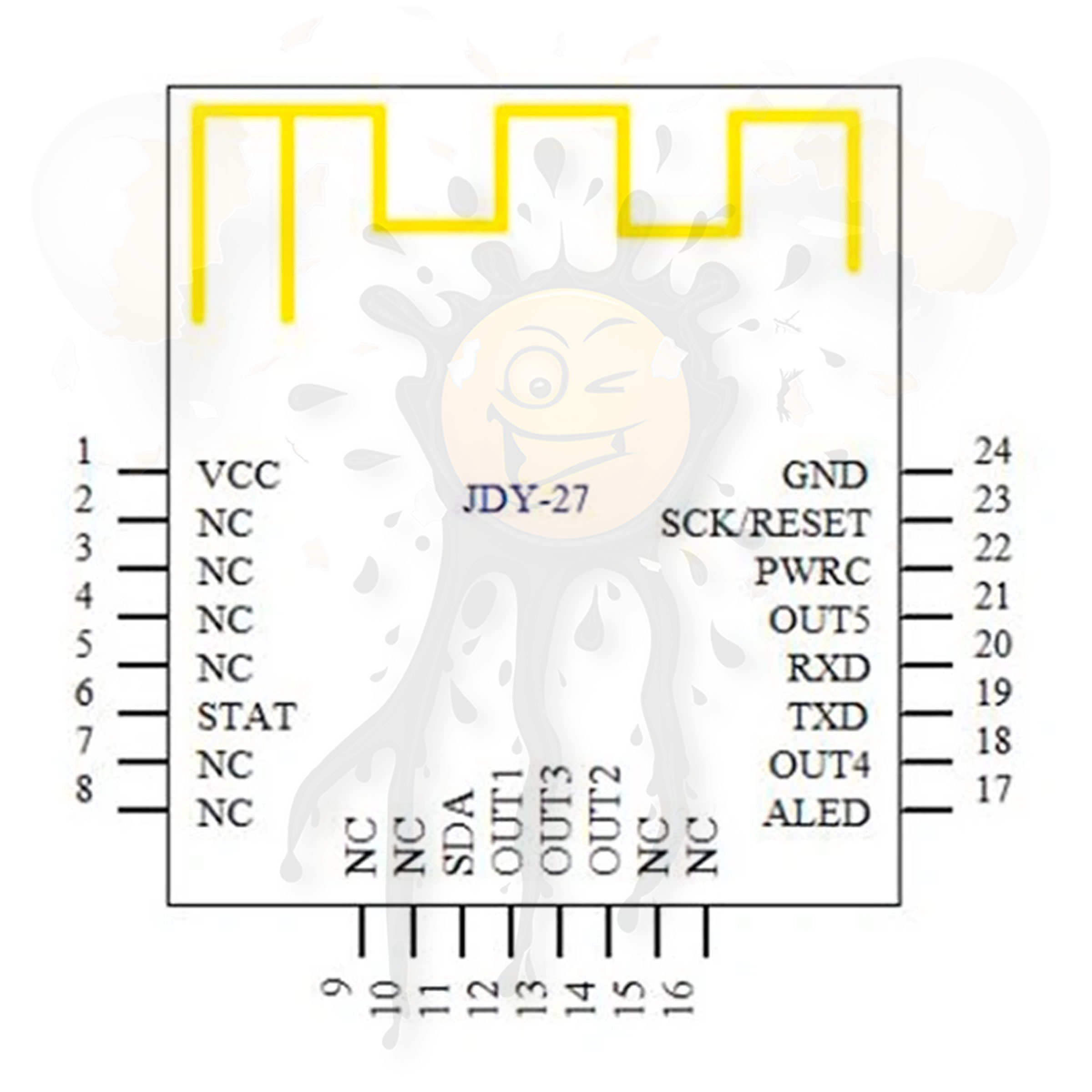

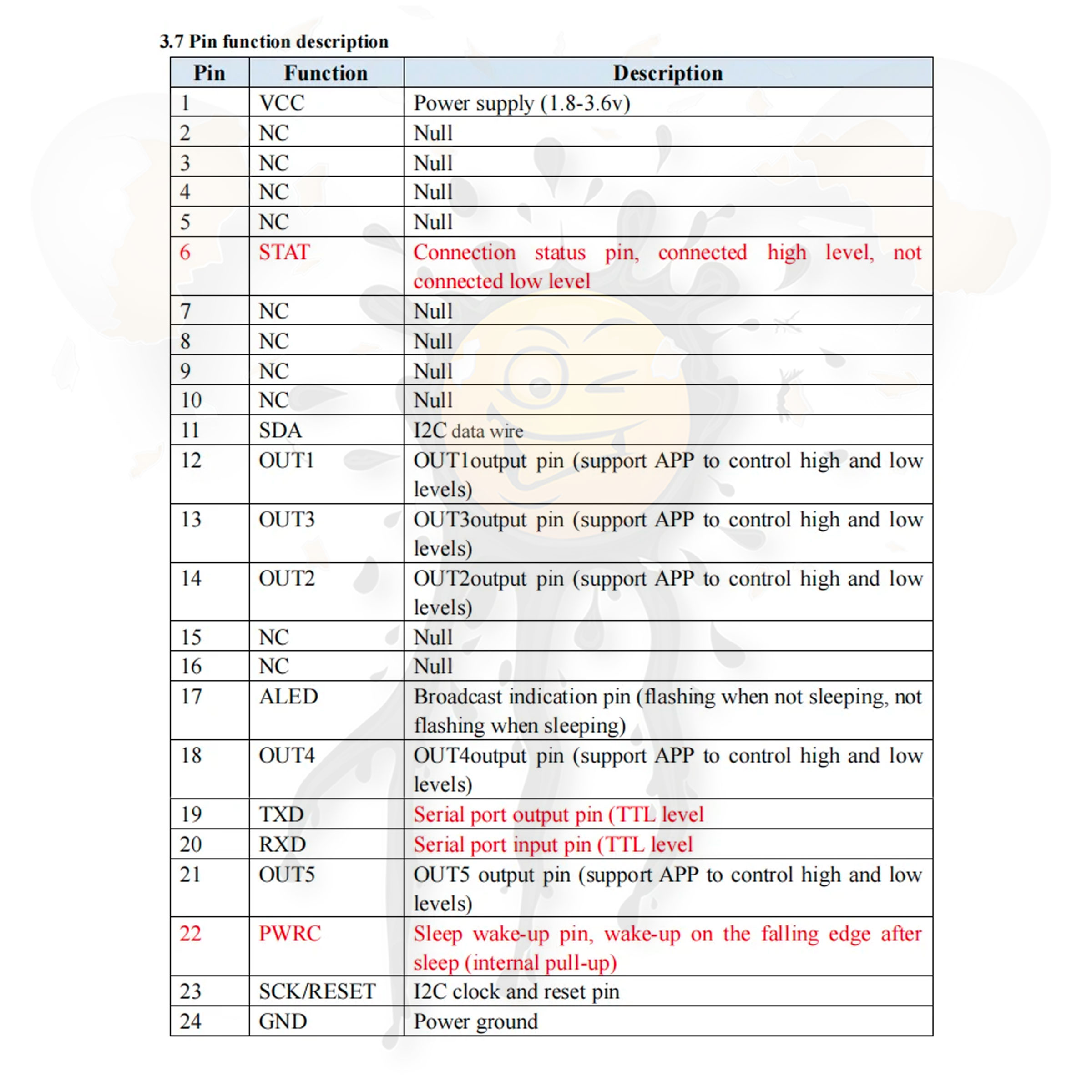

JDY-27 BLE Bluetooth 5.1 Module Pinfunction © androegg

Das JDY-27 BLE Bluetooth Modul unterstützt den BLE 5.1 Protokollstandard des 2,4GHz. Frequenzbereich.

Das JDY-27 Modul verfügt über eine maximale Signalleistung von 2 dB und erreicht bis zu 100 Meter Übertragungsdistanz (freies Feld).

Das JDY-27 Modul unterstützt die GFSK Modulation und ist kompatibel mit

• BLE 5.1
• BLE 5.0
• BLE 4.2
• BLE 4.0

JDY-27 BLE 5.1 Bluetooth Modul

Die Konfiguration des JDY-27 Moduls erfolgt mittels AT Befehlssatz.

The JDY-27 master-slave integrated transparent transmission module is based on the BLE 5.1 protocol standard, the working frequency band is 2.4GHZ range.

The modulation method is GFSK, the maximum transmission power is 2db, and the maximum transmission distance is 100 meters.

The JDY-27 Module supports

• BLE 5.1
• BLE 5.0
• BLE 4.2
• BLE 4.0

JDY-27 BLE 5.1 Bluetooth Module

The JDY-27 Moduel supports At commands thru UART interface.

JDY-27 BLE Bluetooth 5.1 Module Features:

• Model: JDY-27
• Working frequency band: 2.4G
• Transmitting power: 2db (maximum)
• Communication interface: UART
• Working voltage: 1.7V-3.6V
• Working temperature: -40℃-80℃
• Antenna: Built-in PCB antenna
• Receiving sensitivity: -96dbm
• Transmission distance: 100 meters
• Master-slave support: master-slave integration
• BT version: BLE 5.1 (compatible with BLE4.0, BLE4.2, BLE5.0)
• Wake-up state current: 300uA (with broadcast)
• Light sleep state current: <50uA (with broadcast)
• Deep sleep current: 1uA (no broadcast)
• Command parameter saving: parameter configuration data is saved after power-off
• SMT soldering temperature: <250℃
• Serial port to mobile phone: 12K Byte/S (support 115200 full-speed transparent data transmission to mobile phone without packet loss)
• The phone sends to the serial port: 8K Byte/S
• Android MTU support: ≤247 byte
• Apple MTU support: ≤185 byte
