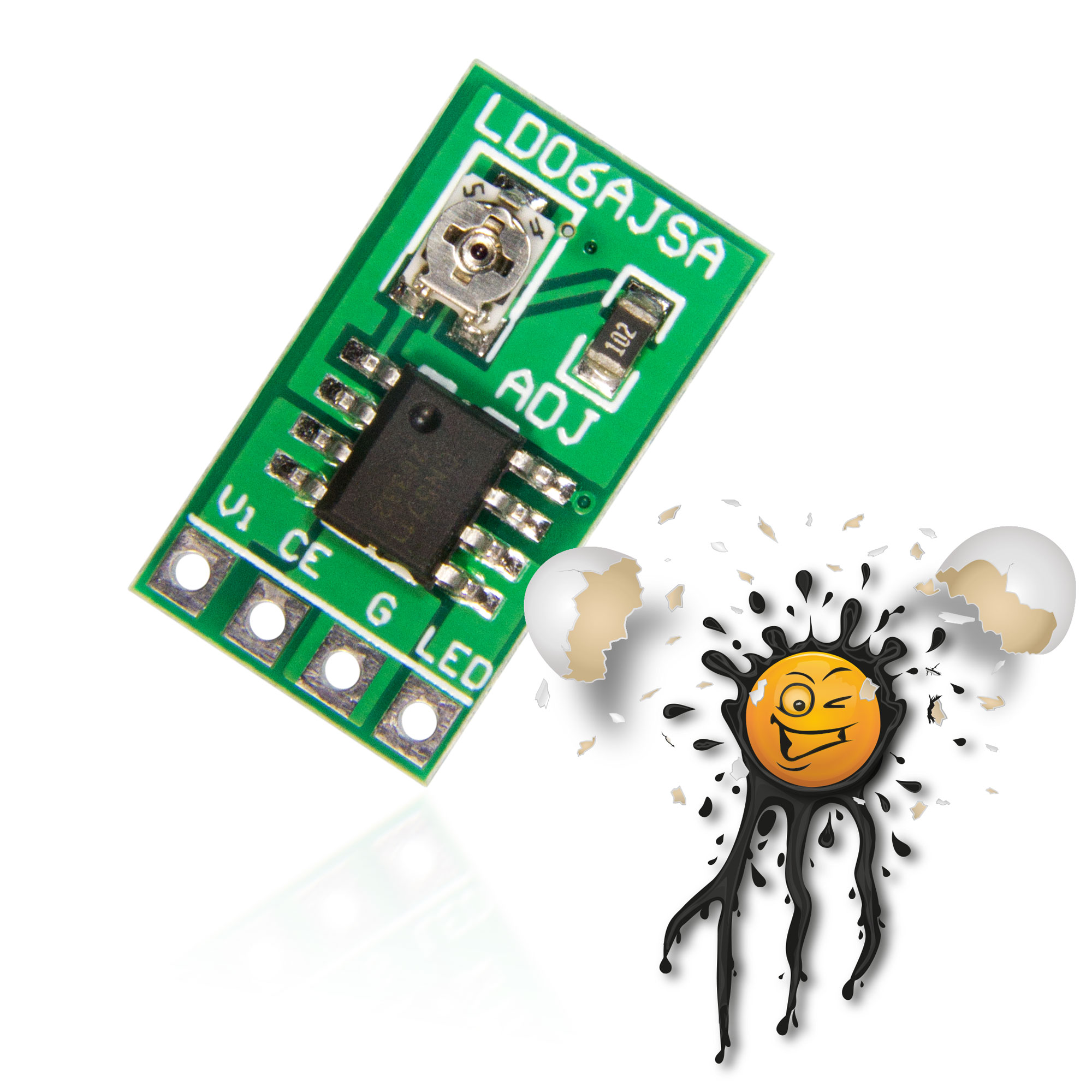

LD06AJSA CN5711 PWM LED Konstantstrom constant current Driver Module

LD06AJSA CN5711 PWM LED Konstantstrom constant current Driver Module 30-1500mA 2,8-6V adjustable

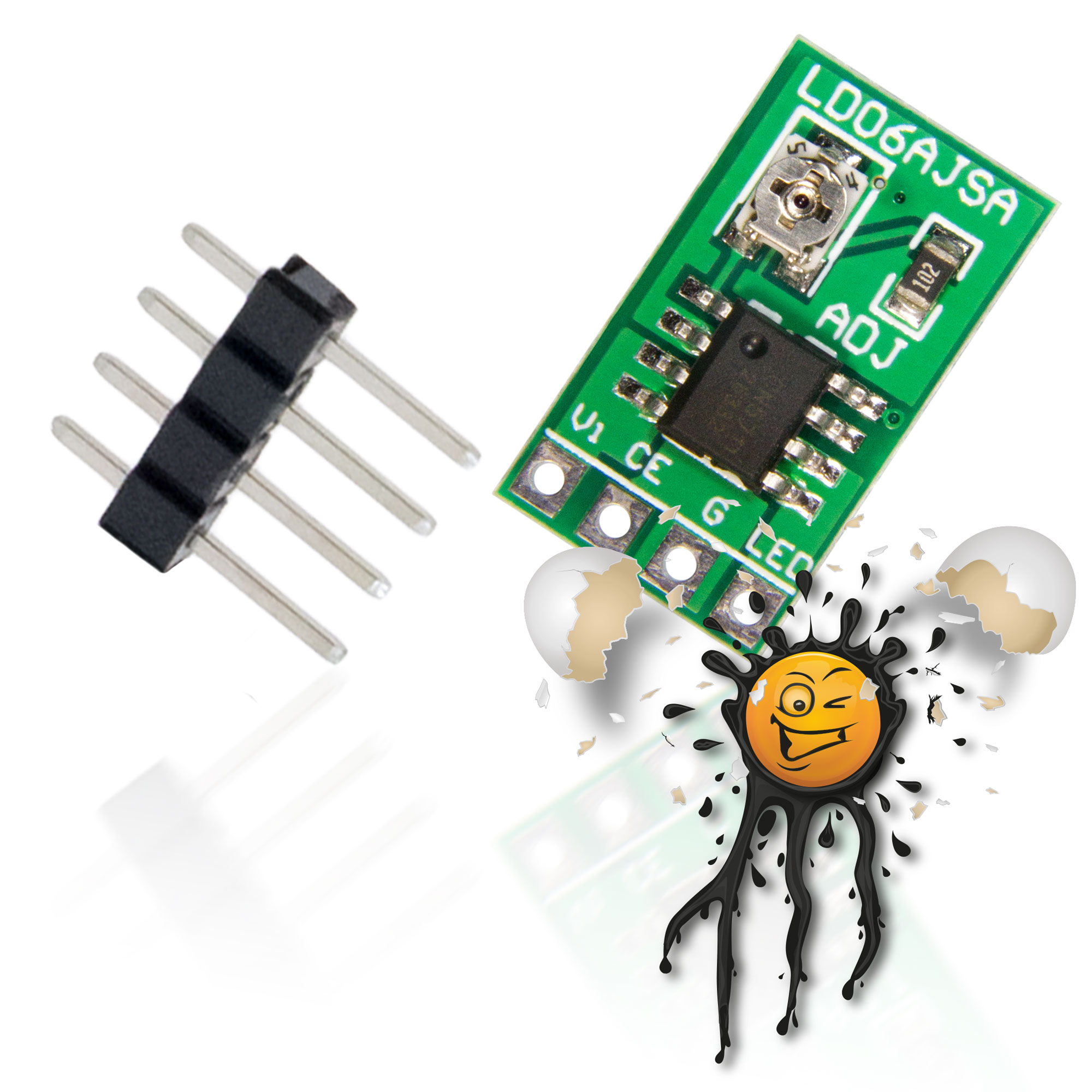

LD06AJSA CN5711 PWM LEDconstant current Driver Module + Pins © androegg

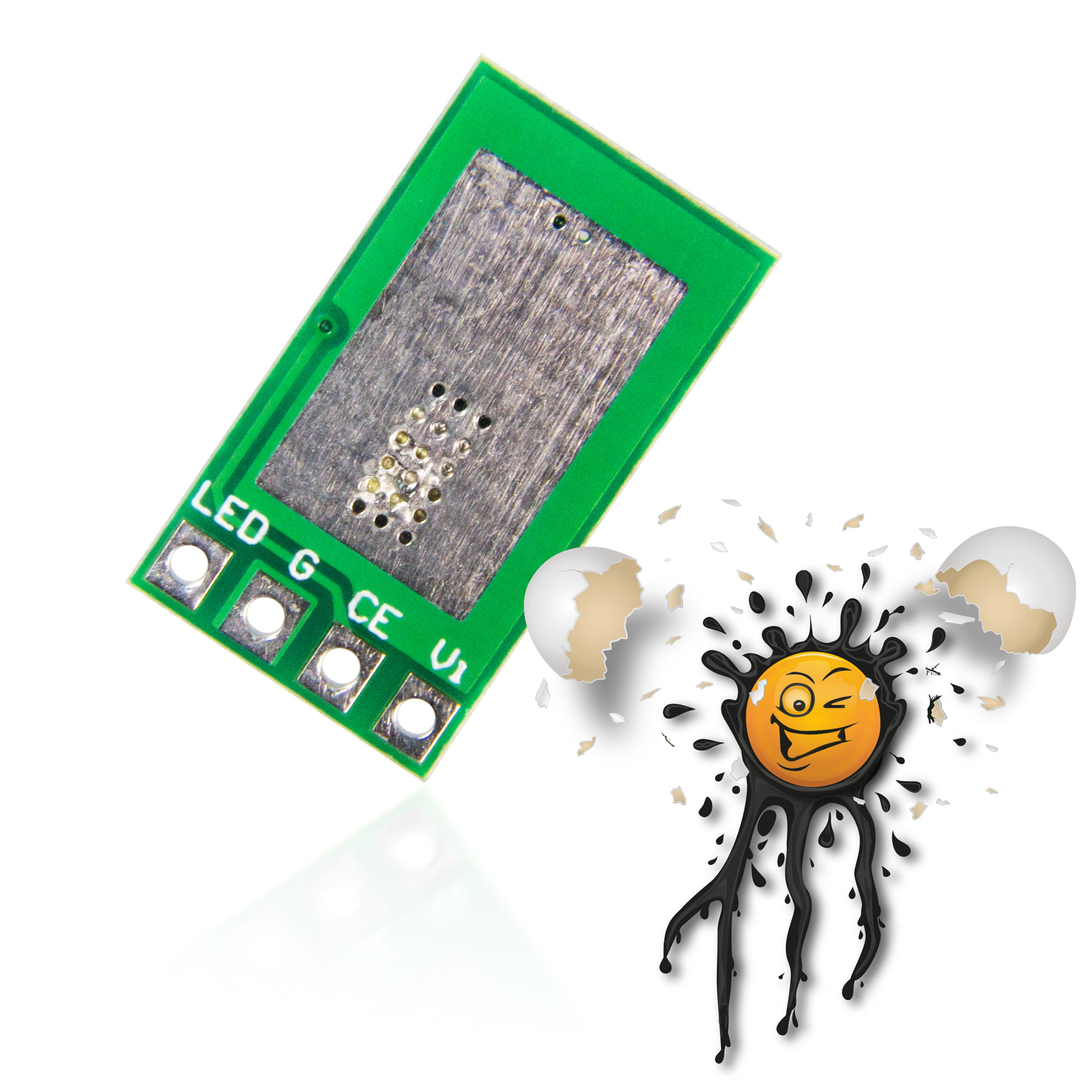

LED PWM constant current Driver 30-1500mA 2.8-6V © androegg

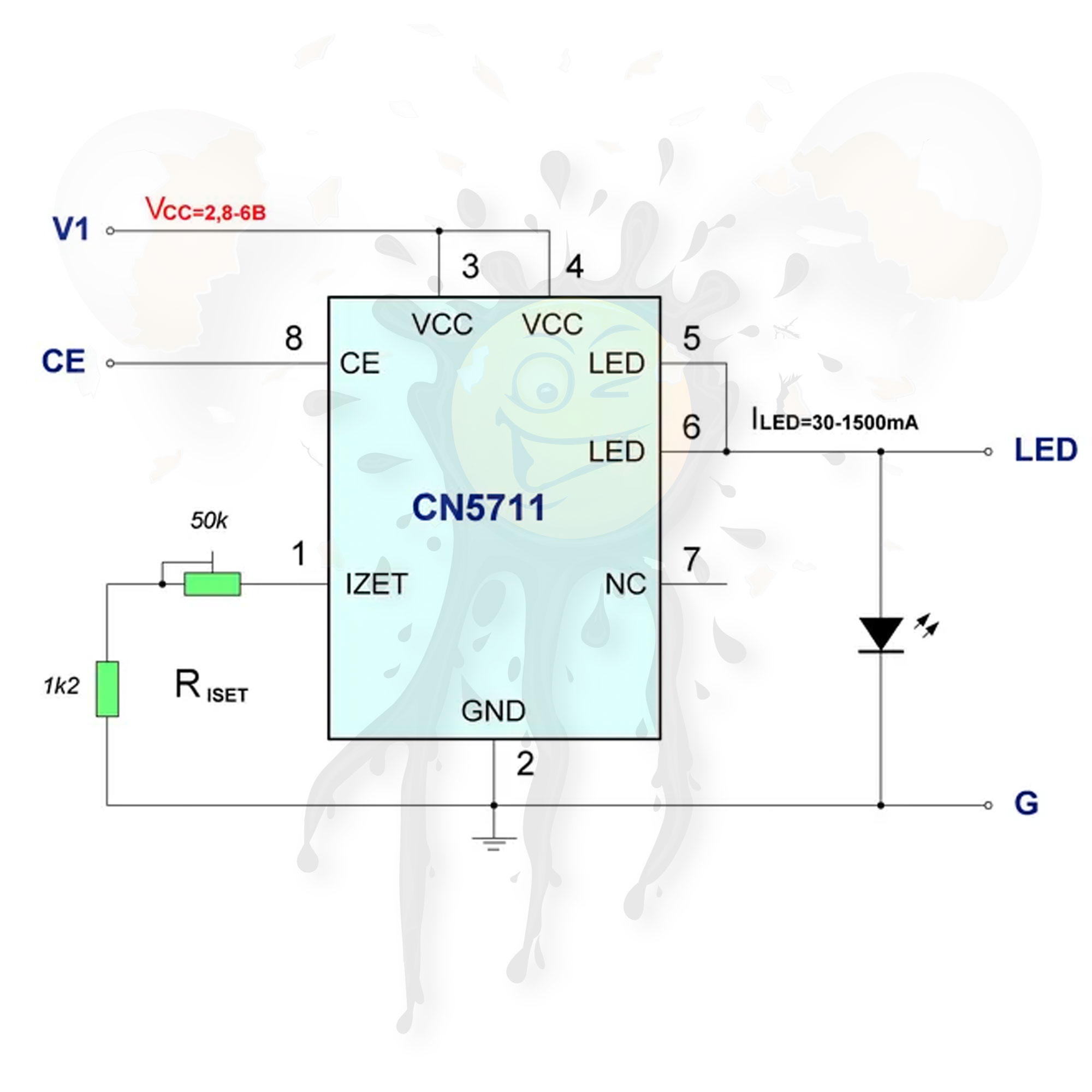

LD06AJSA CN5711 PWM LED Driver Module Pinout © androegg

Das LD06AJSA Modul CN5711 LED Treiber IC.

basiertn auf dem

Das LD06AJSA Modul ist eine LED Stromregelungsschaltung, die Eingangsspannung von 2,8 V bis 6 V unterstützt.

konstant Strom LED Treiber

Der jeweilig, konstante Ausgangsstrom wird mittels Potentiometer im Bereich von 30-1500mA eingestellt.

Der CE Pin kann sowohl als enable Pin (High Level) oder als PWM Eingangssignal (TTL oder CMOS Level) verwendet werden.

The LD06AJSA Module is based
on CN5711 LED Driver IC.

The LD06AJSA is an LED current regulation circuit that supports input voltage from 2.8V to 6V.

constant current LED Driver

The required output current is adjustable thru potentiometer.

The CE pin can be used as an enable pin (high level) or as PWM signal input (TTL or CMOS level).

CN5711 LED Controller Module Features:

• Working voltage : DC 2.8-6V(Perfect for 3V 3.3V 3.7V 5V 6V LED Driver)
• Output Current: 30-1500MA
• Maximum output power: 9W
• Can drive 1-16pcs 3-6V LEDs (maximum current does not exceed 1.5A)
• Current regulation: through adjustable resistance / potentiometer
• CE Pin
  • Chip enable / active High
  • PWM signal input
• Chip Temperature Regulation
• Over LED Current Protection
