LGT8F LGT8F328P 32MHz. Nano Larduino HSP USB-C

LGT8F328P 32MHz. USB-C Larduino_HSP Arduino MCU Entwickler- Development- Board

LGT8F Logic Green Pro-Micro Nano USB-C Development Board © androegg

LGT8F Logic Green Pro-Micro Nano USB-C Development Board © androegg

LGT8F Logic Green Pro-Micro Nano USB-C Development Board © androegg

LGT8F 328P Entwicklerboard

Mittels der Logic Green Ladruino_HSP Bibliothek kann das LGT8F Entwickler Board mittels der gewohnten Arduino IDE betrieben werden.

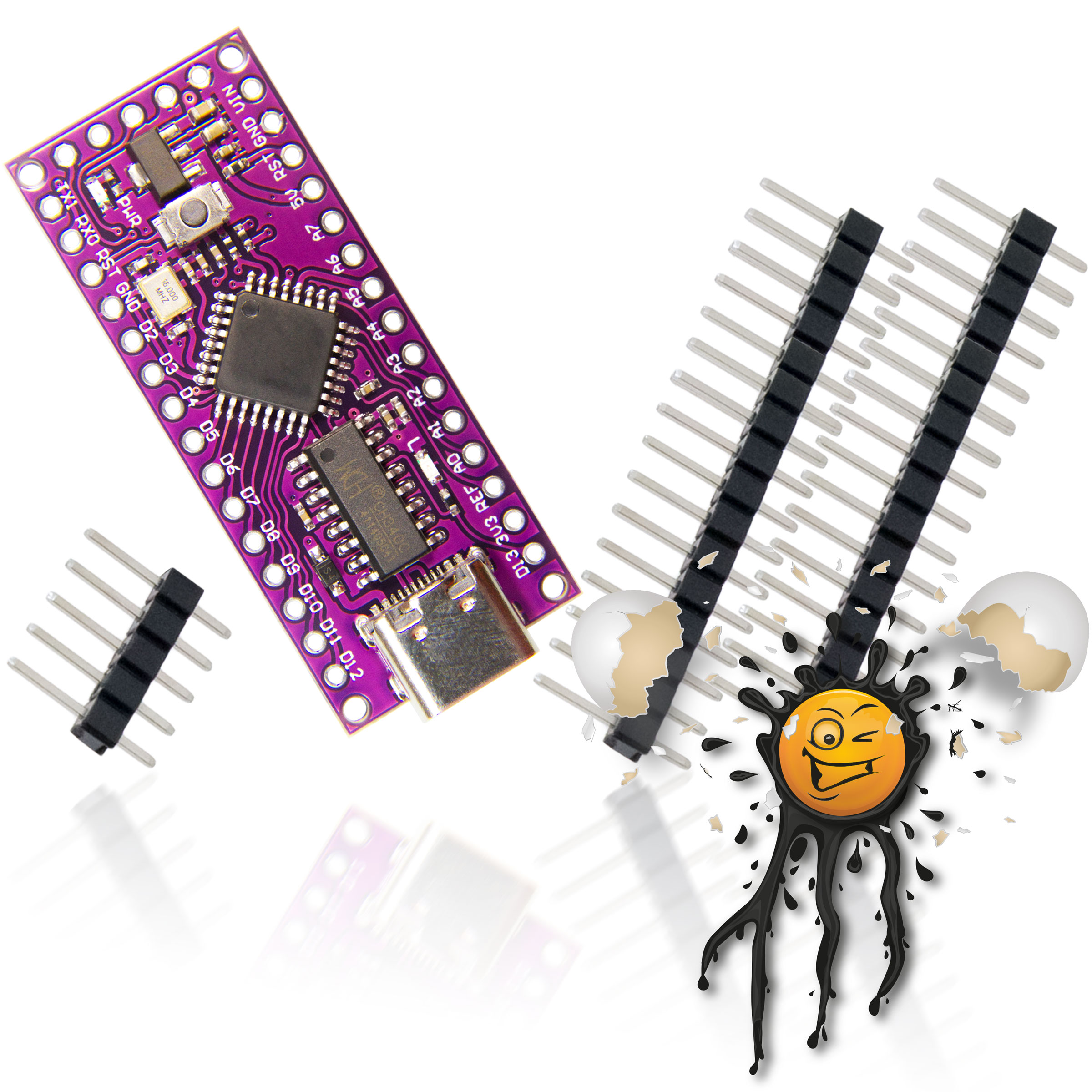

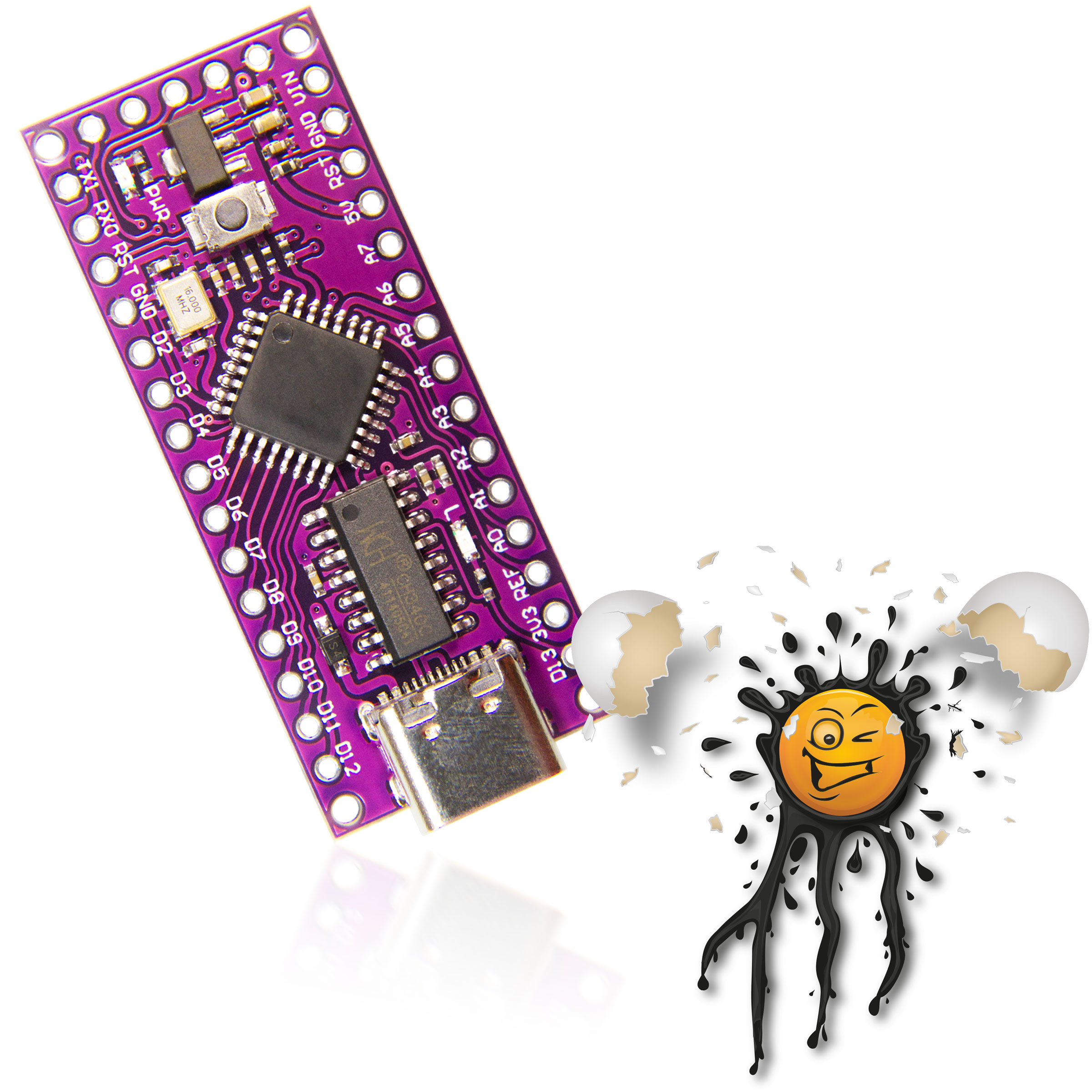

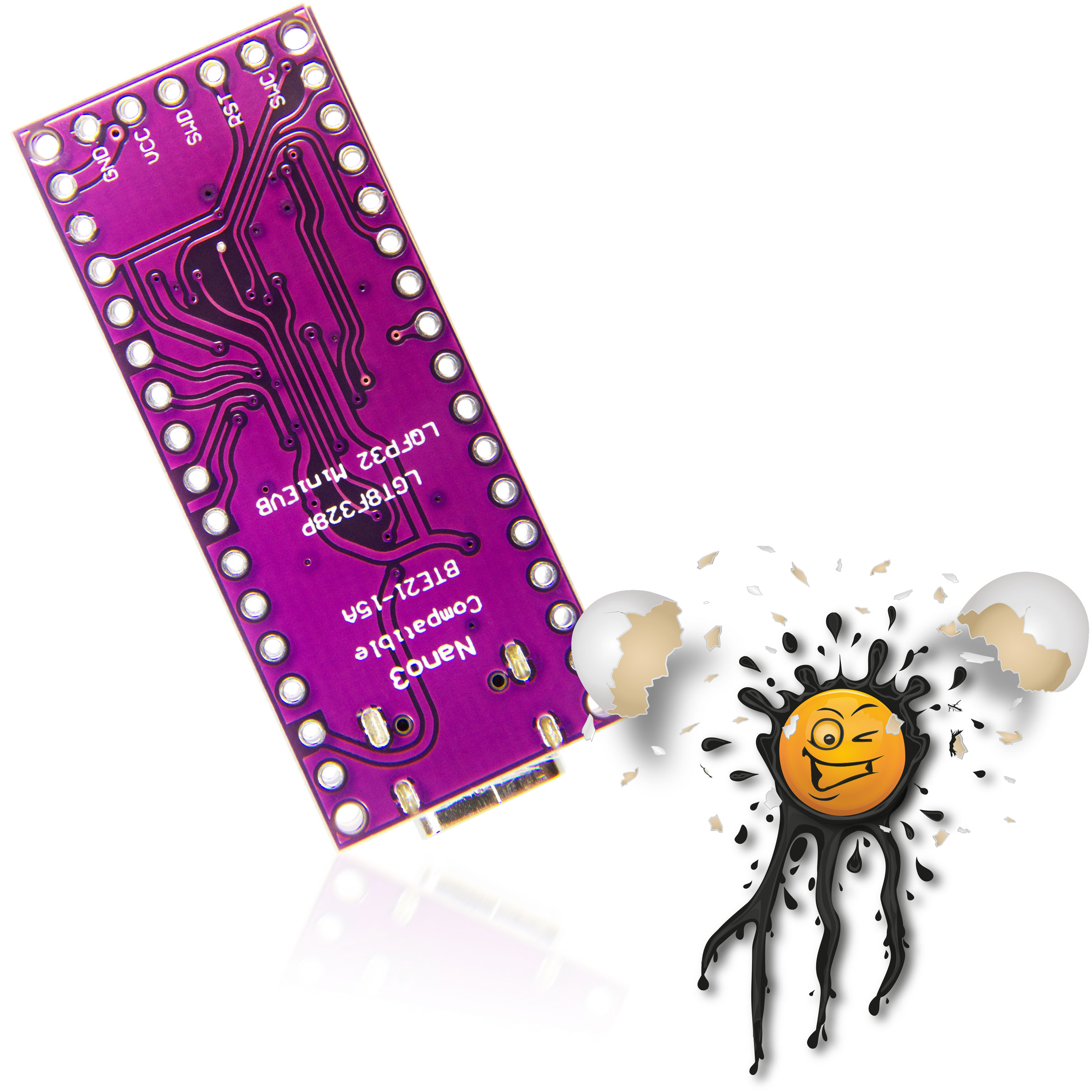

The LGT8F328 Mini EVB Development Board USB-C Socket with CH340 USB/TTL Converter on Board and Pin Header

LGT8F 328P Development Board

With the Logic Green Larduino_HSP Library the LGT8F Development Board could be operated thru the Arduino IDE.

Logic Green LGT8F328P Features:

• supports 3.3V-5V Power supply
• 16M (typ.) up to 32M Frequency
• Built-In High-Precision the RC
• 12-bit ADC (analog-to-digital conversion)
• ADC sampling rate up to 500Ksps
• 2 anaolg Comparator
• On-Board DAC
• Unique ID perfect for Encryption
• ABuilt-In internal 1.024V / 2.048V / 4.096V ± 1% calibratable Source Reference voltage software.
• FLASH Size 32Kbytes
• SRAM 2Kbytes
• E2PROM 0K / 1K / 2K / 4K / 8K (FLASH Share)
• up to PWM 8

• PWM dead zone control
• High current push – pull PWM
• Frequency 16MHz (Maximum 32MHz)
• Computing Accelerator (DSC)
• UART 1
• SPI
• TWI (I2C)
• GUID
• System logic level 5V
• Internal benchmark 1.024V / 2.048V / 4.096V ± 0.5%
• Internal reference resoltuion ±5%
• Stacking expansion system
