PWM Temperatur 12V 5A PC Lüfter Fan Controller Board Set

PWM Temperatur 12V 5A PC Lüfter Fan Controller Board Set NTC3950 Thermistor Sensor Alarm Buzzer

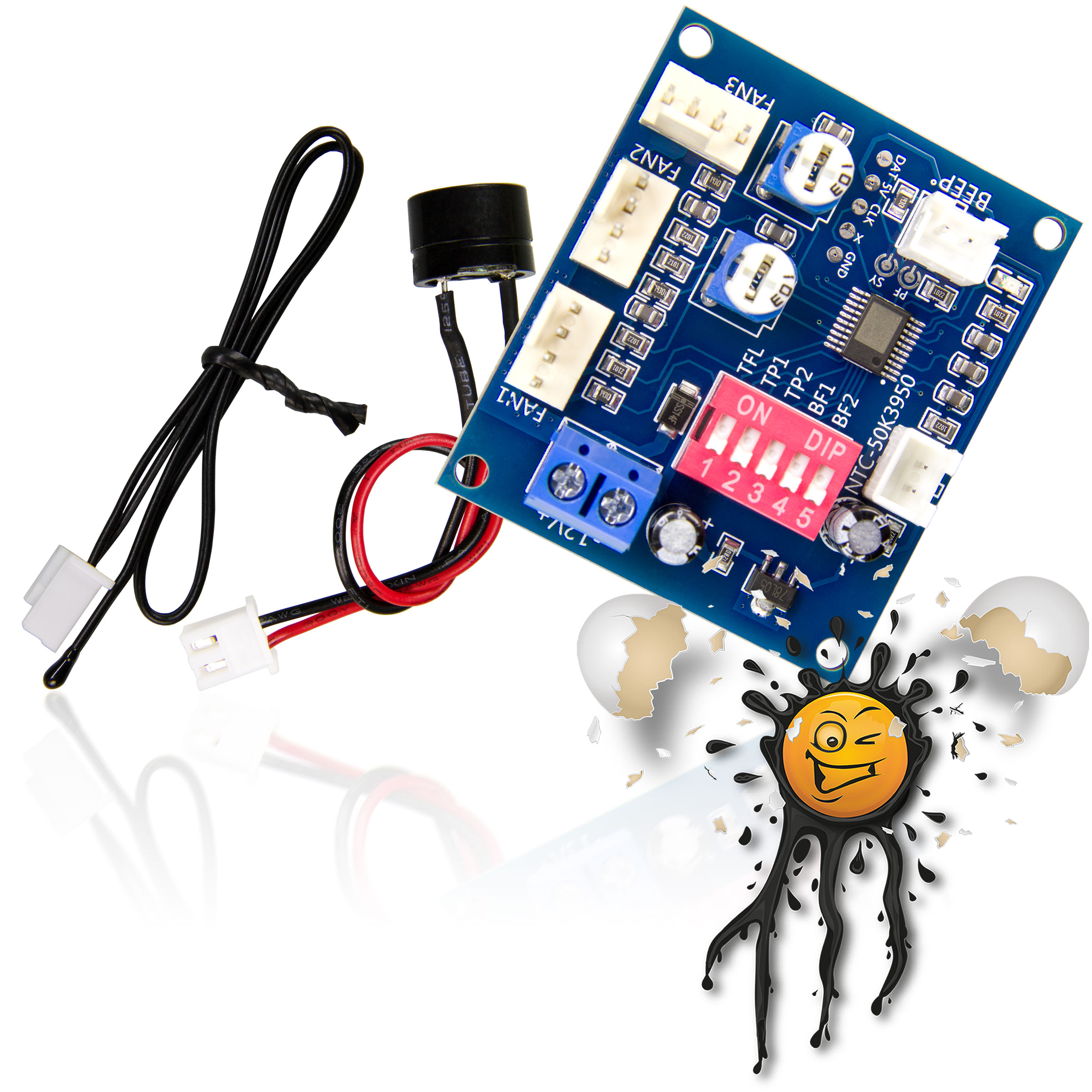

12V PC PWM temperature fan controller set © androegg

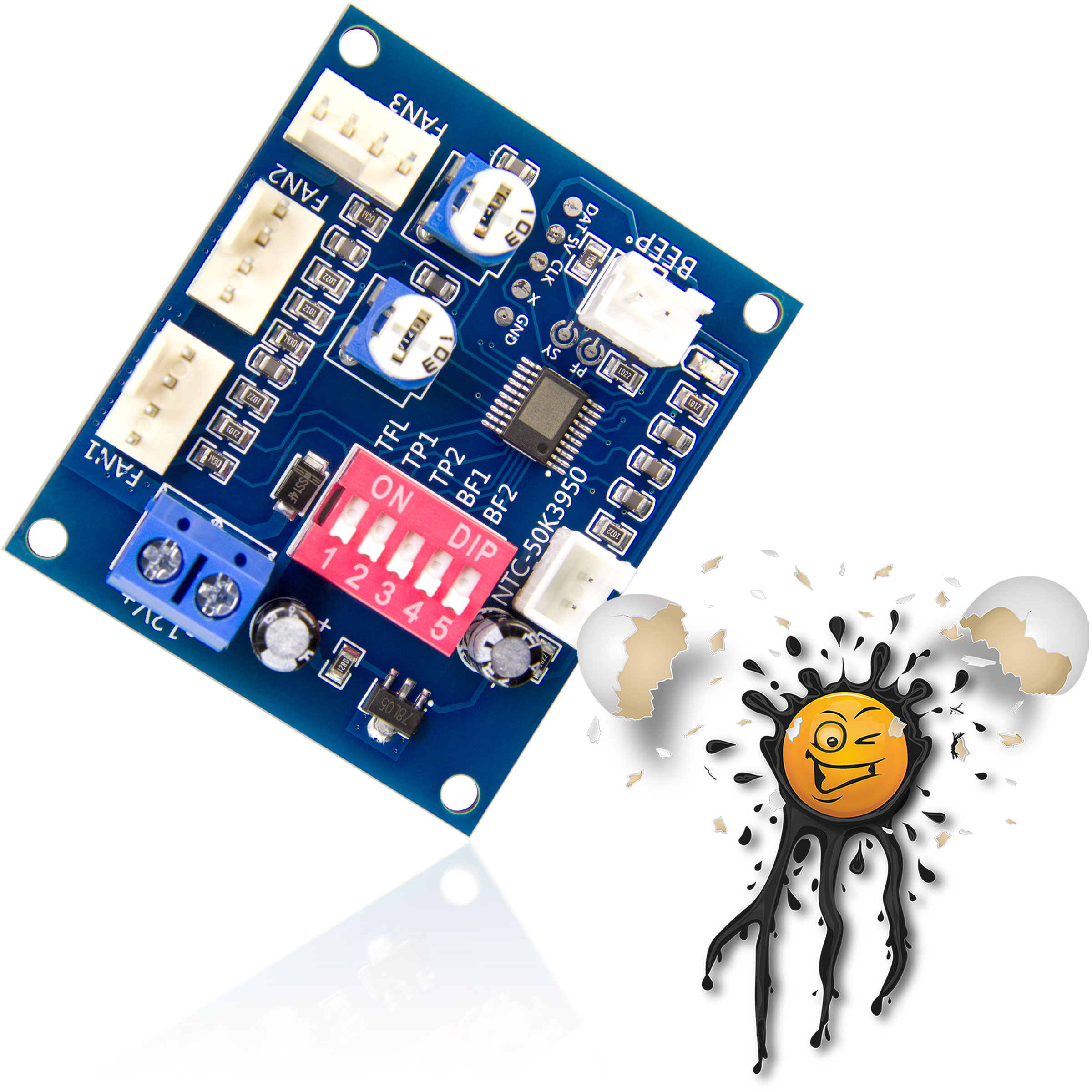

12V PC PWM temperature fan controller board © androegg

12V PC PWM temperature fan controller setting © androegg

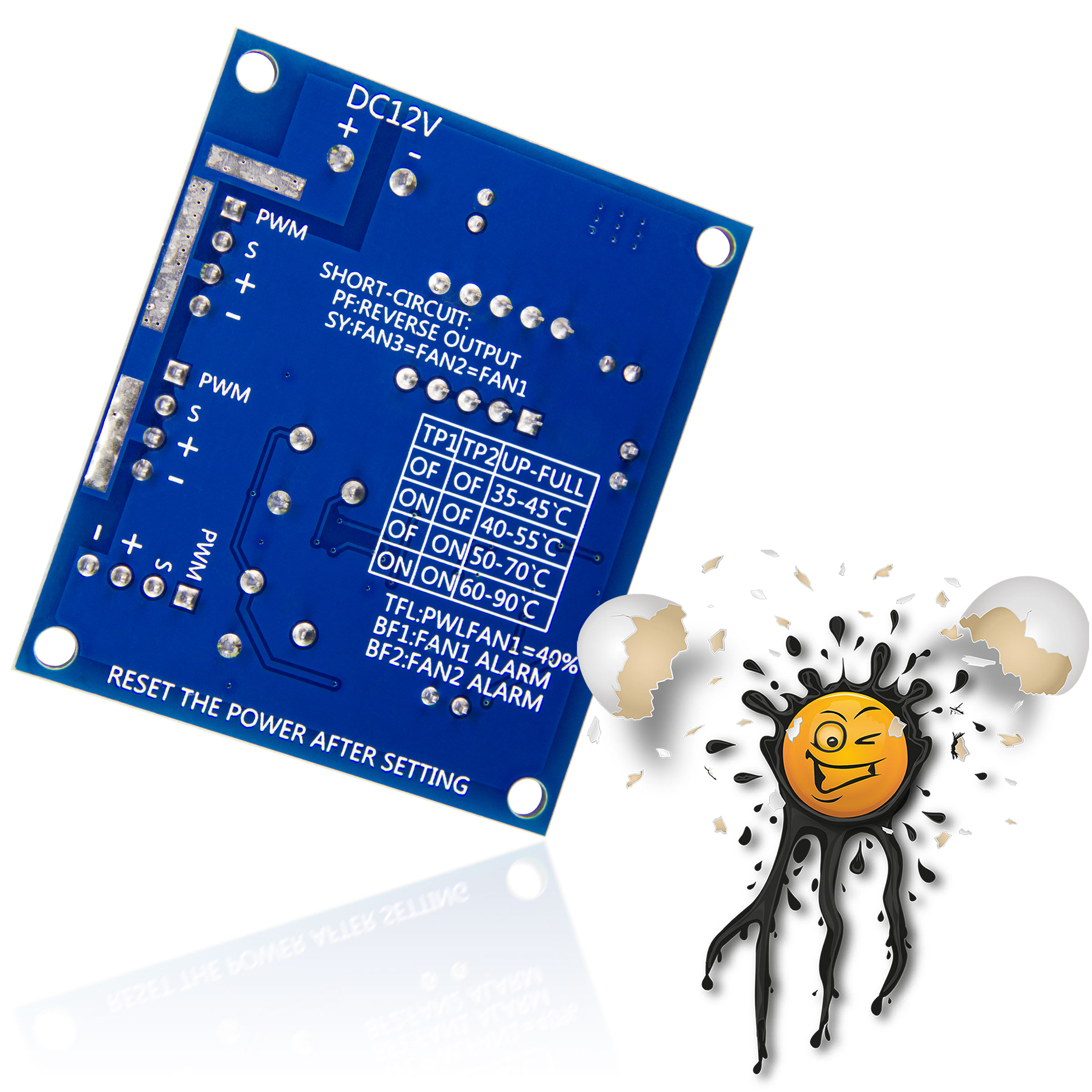

12V PC PWM temperature fan controller board © androegg

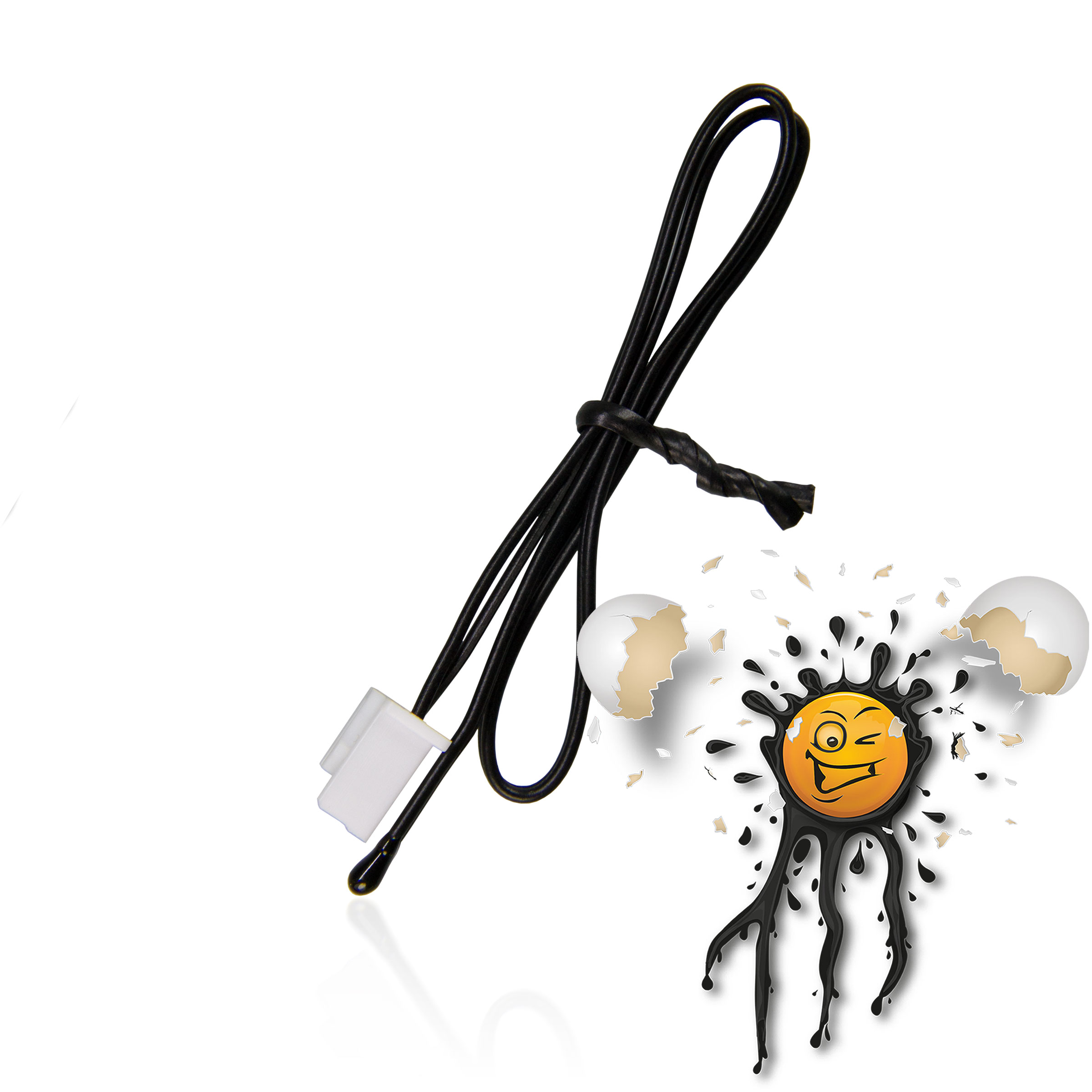

NTC3950 thermistor with JST-XH connector © androegg

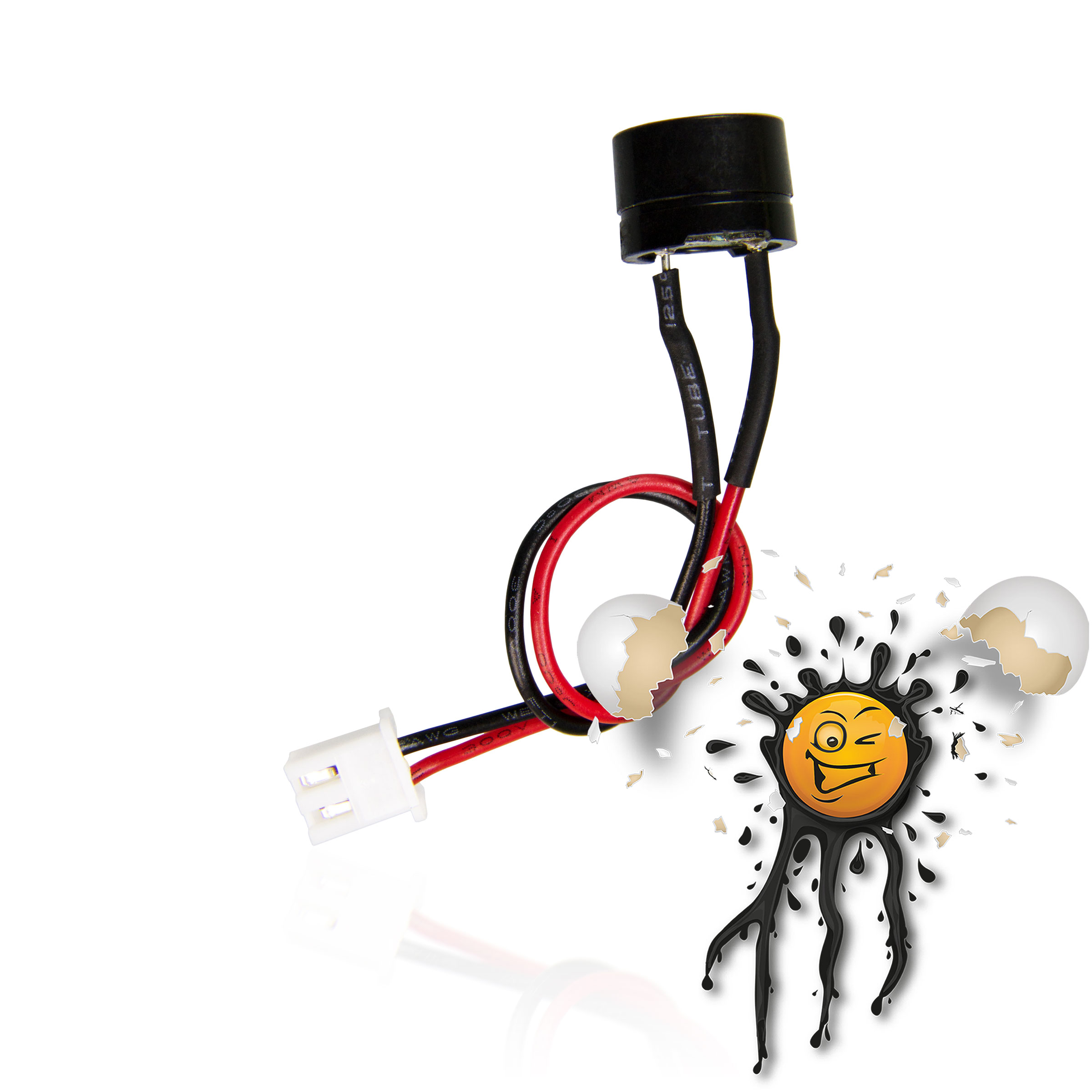

Alarm Buzzer with JST-XH connector © androegg

Das PC PWM Lüfter Controller Set beinhaltet:

• 1 Stück 12V Lüfter Controller Board
• 1 Stück NTC3950 50K Thermistor
• 1 Stück Buzzer

Das 12V PWM Lüfter Controller Board unterstützt bis zu 3 Lüfter mit bis zu 5A.

Die zentrale 12V Spannungsversorgung erfolgt über eine Schraubklemme, Buzzer und Thermistor werden über JST-XH Steckverbinder angeschlossen.

12V PC Lüfter PWM Controller set

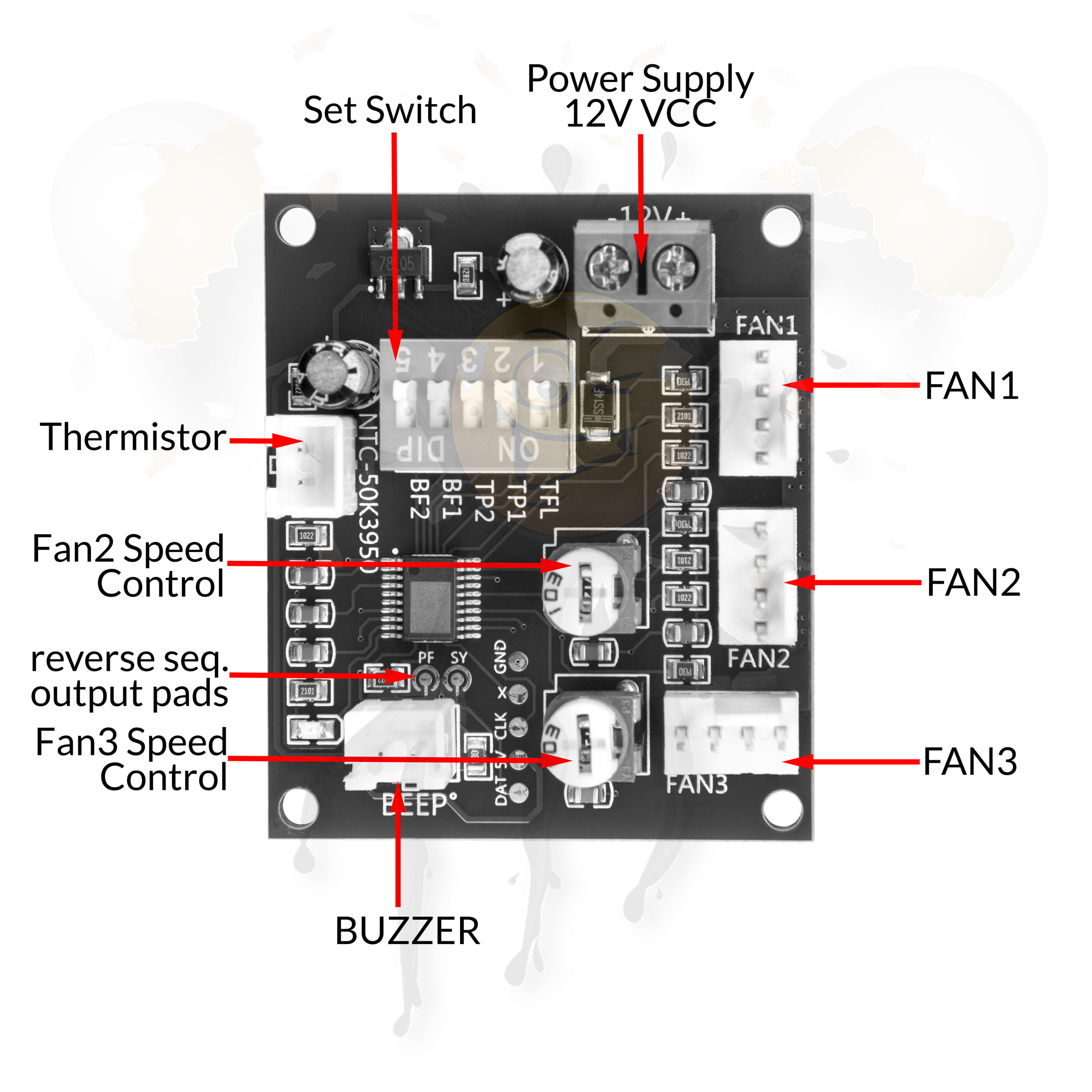

Die Einstellung der grundlegenden Schwellenwerte für Lüfterdrehzahl und Alarm erfolgt mittels Jumper.

Die Drehzahl für Lüfter 2 und Lüfter 3 können individuell mittels Potentiometer angepasst werden.

• 1 piece 12V fan controller board
• 1 piece NTC3950 50K thermistor
• 1 piece buzzer

The 12V PWM fan controller board supports up to 3 fans with up to 5A.

The central 12V power supply is via a screw terminal, buzzer and thermistor are connected via JST-XH connectors.

12V PC Fan PWM Controller Set

In addition to direct user input via pin/button, the JQ6500 also supports direct function control via the UART/RX/TX serial interface.

It should be noted that the UART interface is not 5V tolerance, so a 1KΩ resistor must be connected between the JQ6500 RX pin and TX pin of a 5V MCU.

There are currently some libraries that enable direct UART communication or implement the following UART protocol.

12V PC Fan PWM Controller Setting

12V PC Fan PWM Controller Set Features:

• Supply voltage 12V
• max. output current 5A (9A peak)
• Output Range
  • Fan1 20-100%
  • Fan2 Fan3 10-100%
• NTC 3950 Thermistor
• Alarm Buzzer
• setable thru
  • switch
  • potentiometer
