RS485 RS422 MAX3485E EPA0040 3-3,6V DIP 8

RS485 RS422 MAX3485E EPA0040 3-3,6V half duplex RS485 to RS232 UART DIP 8 IC

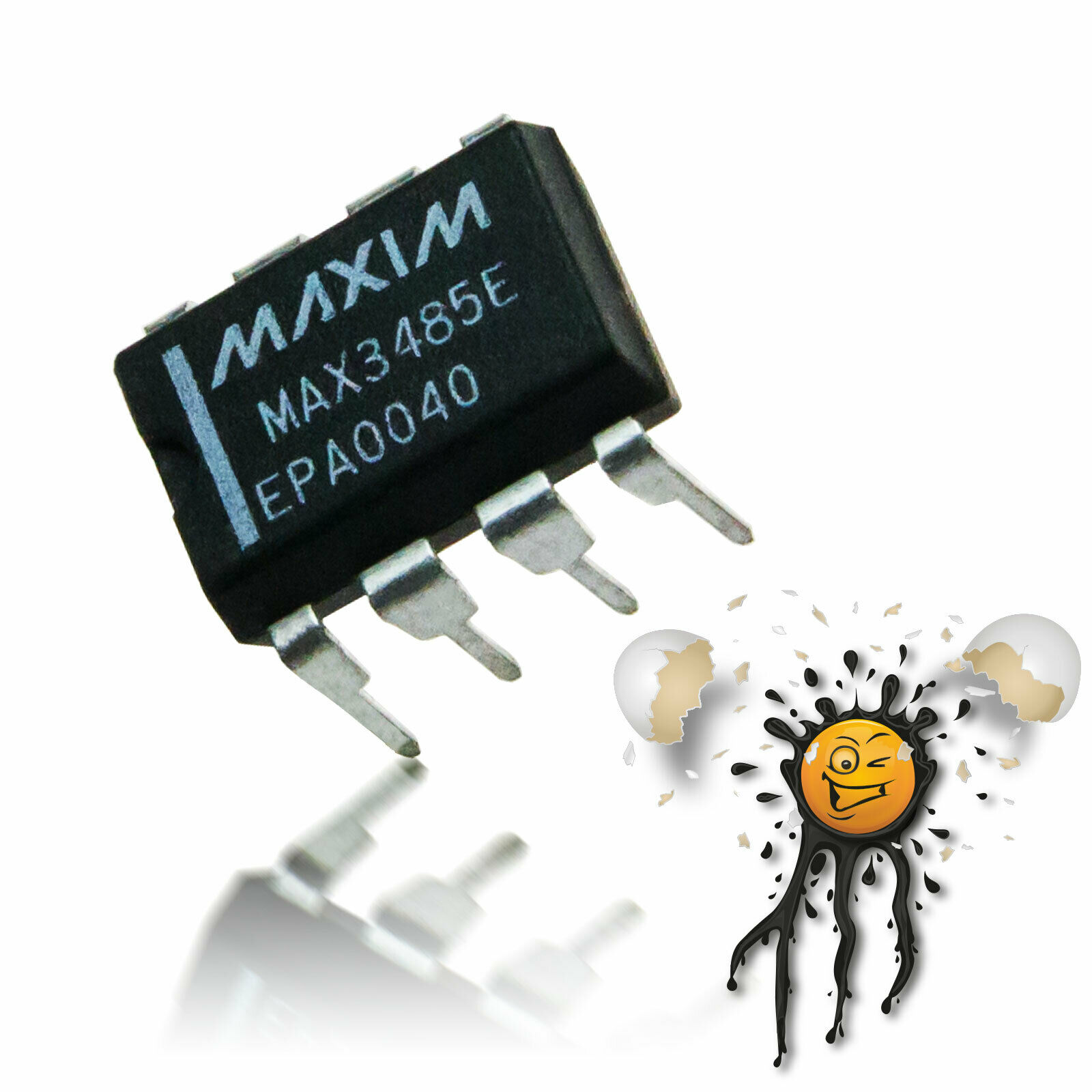

RS485 / 422 MAX3485E EPA0040 to UART Dip 8 IC © androegg

Der MAX3485E ist ideal für die Umsetzung von RS-485 RS-422 auf RS232 / UART.

MAX3485E RS485 RS422 auf RS232 UART Dip 8 IC

MAX3485E RS485 RS422 to RS232 UART Dip 8 IC

MAX3485E Dip 8 IC Features:

• ESD Protection for RS-485 I/O Pins
  ±15kV—Human Body Model
  ±8kV—IEC 1000-4-2, Contact Discharge
  ±15kV—IEC 1000-4-2, Air-Gap Discharge
• Operate from a Single +3.3V Supply—
  No Charge Pump Required
• Interoperable with +5V Logic
• Guaranteed 12Mbps Data Rate
• 2nA Low-Current Shutdown Mode
• -7V to +12V Common-Mode Input Voltage Range
• Half-Duplex Mode
• Industry-Standard 75176 Pinout
• Current-Limiting and Thermal Shutdown for
  Driver Overload Protection
