STM8 STM8S103F3P6 Entwickler- Development- Board

STM8 STM8S103F3P6 Entwickler- Development- Board inkl. Pinleiste Arduino ARM

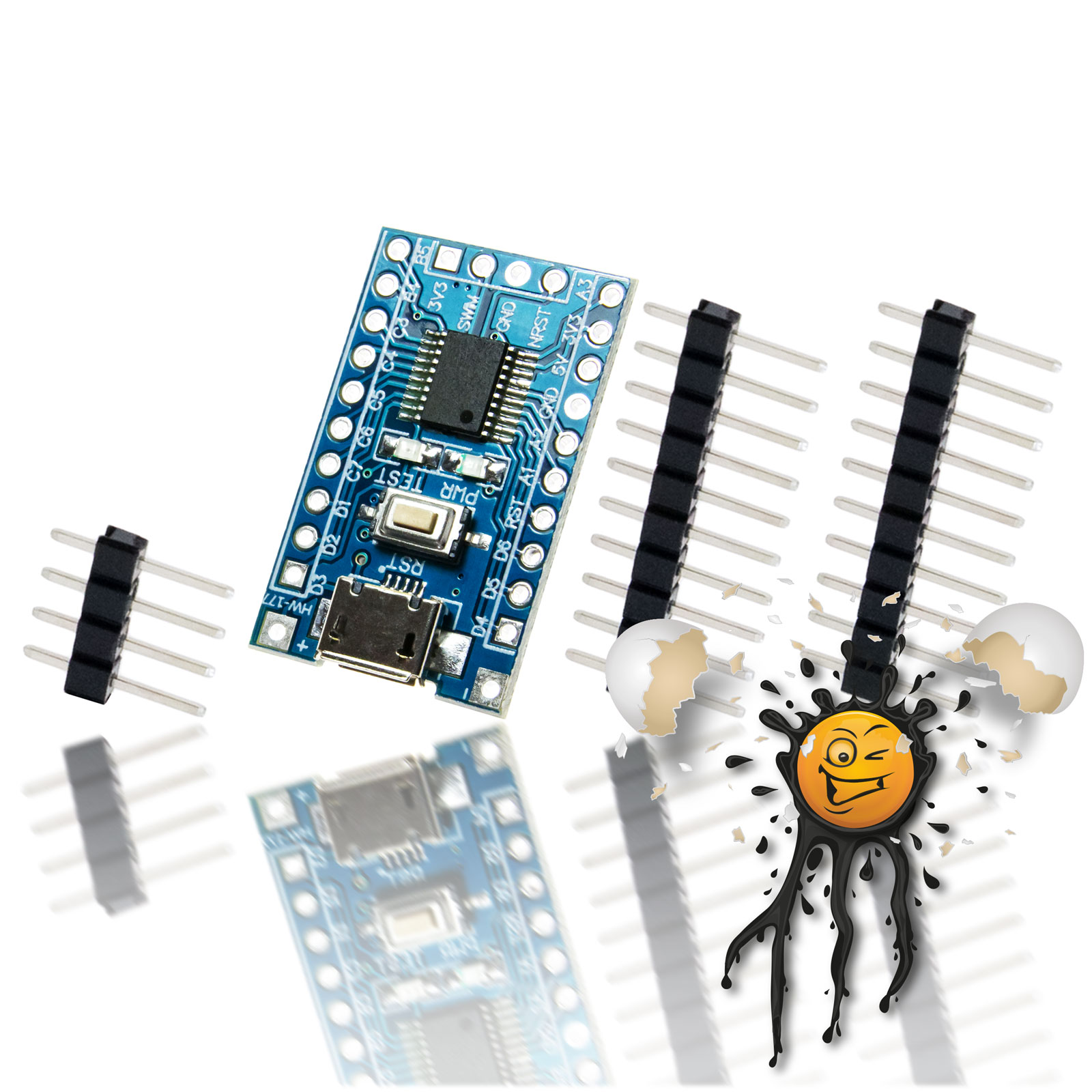

STM8S103F3P6 Development Board incl. Pin Header © androegg

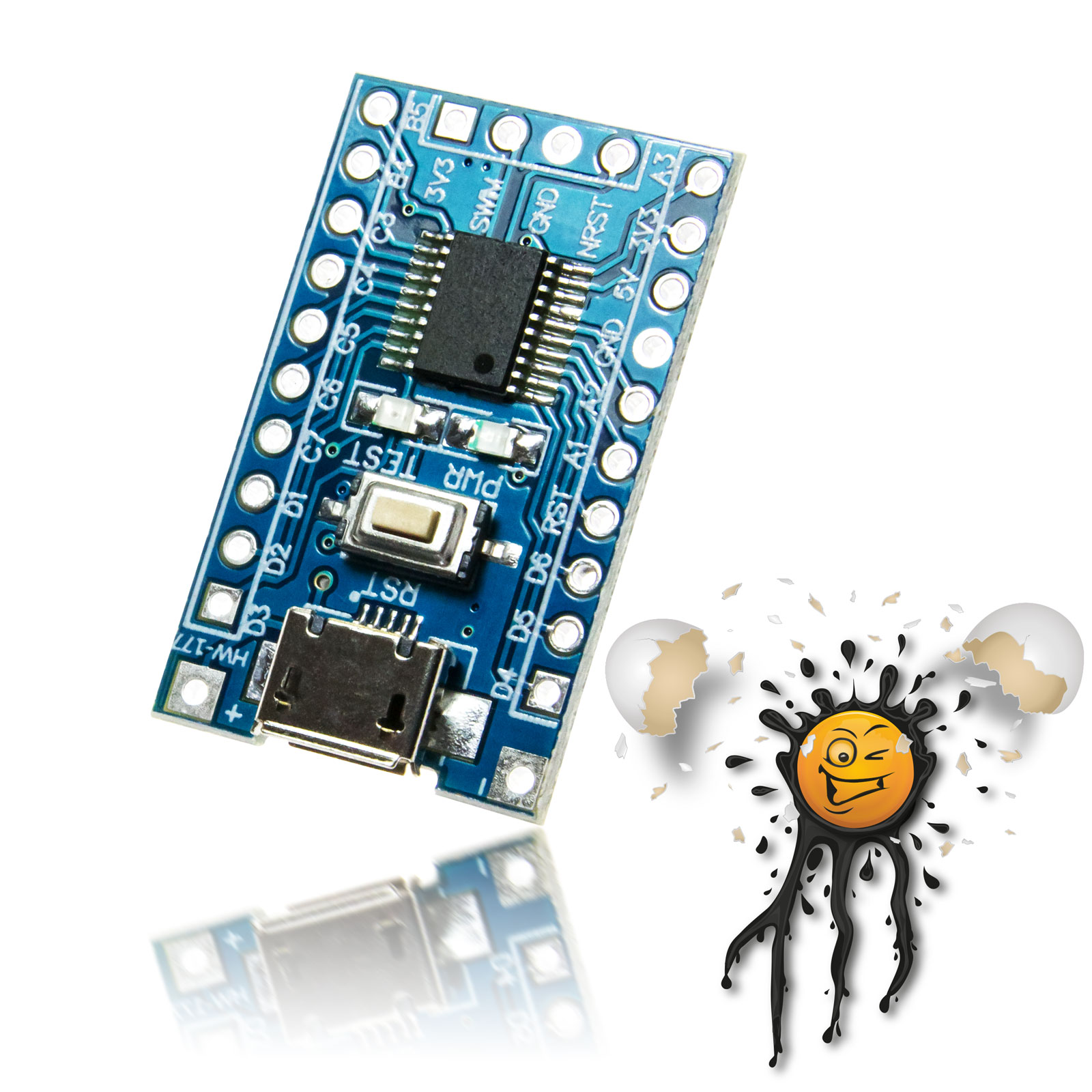

STM8S103F3P6 Development Board © androegg

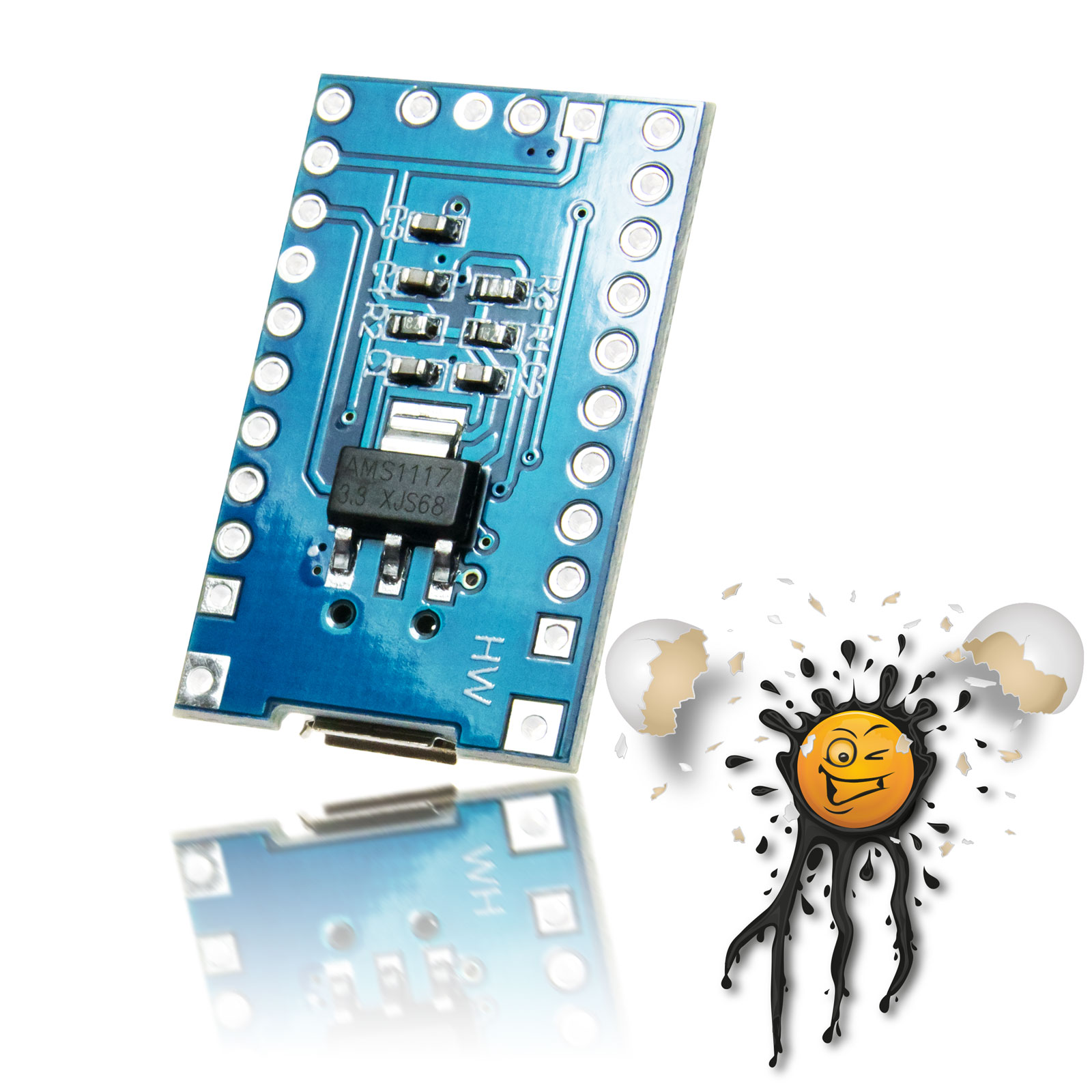

STM8S103F3P6 Development Board integrated AMS1117 © androegg

Das STM8 Minimum Entwicklerboard basiert auf dem STM8S103F3 von ST Microelectronics.

Im Lieferumfang ist

• 1 Stück STM8 Minimum Entwicklerboard
• 2 Stück Pinleiste 2,54 mm Pitch 10 polig
• 1 Stück Pinleiste 2,54 mm Pitch 4 polig

enthalten.

Der STM8S103F3 basiert auf dem 16 MHz advanced STM8 core mit Harvard Architektur und unterstützt

• UART
• SPI
• I2C
• GPIO
• ADC
• PWM

STM8 Minimum Entwicklerboard

Das STM8 Minimum Entwicklerboard verfügt ferner über einen AMS1117 Spannungskonverter und erlaubt eine Spannungsversorgung direkt über USB Micro Anschluss.

The STM8 Minimum Development Board is based on STM8S103F3 from ST Microelectronics.

The STM8 Development Board incl.

•  1 pcs. STM8 Minimum Development Board
• 2 pcs. 10-pin Pinheader 2.54 mm Pitch
• 1 pcs. 4-pin Pinheader 2.54 mm Pitch

The STM8S103F3 is based on a 16 MHz advanced STM8 core with Harvard
architecture and supports

• UART
• SPI
• I2C
• GPIO
• ADC
• PWM

STM8 Minimum Development Board

The STM8 Development Board has an integrated AMS1117 Voltage Converter conectable thru USB Micro Connector.

STM8 Minimum Develoment Board Features:

• integrated AMS1117 Voltage Converter
• incl. Pin Header
• Power Supply –
  5V via micro USB,
  or 4.4 – 15V input via -/+ through holes
• 4-pin debug header (SWIM)
• Reset button
• Indicator LED
  Power and user (test) LED

STM8S103F3 Features:

• Core
  • 16 MHz advanced STM8 core with Harvard
  architecture and 3-stage pipeline
  • Extended instruction set
• Memories
  • Program memory: 8 Kbyte Flash; data
  retention 20 years at 55 °C after 10 kcycle
  • Data memory: 640 byte true data EEPROM;
  endurance 300 kcycle
  • RAM: 1 Kbyte
• Clock, reset and supply management
  • 2.95 to 5.5 V operating voltage
  • Flexible clock control, 4 master clock sources
  – Low power crystal resonator oscillator
  – External clock input
  – Internal, user-trimmable 16 MHz RC
  – Internal low-power 128 kHz RC
  • Clock security system with clock monitor
  • Power management:
  – Low-power modes (wait, active-halt, halt)
  – Switch-off peripheral clocks individually
  • Permanently active, low-consumption poweron
  and power-down reset
• Interrupt management
  • Nested interrupt controller with 32 interrupts
  • Up to 27 external interrupts on 6 vectors
  Timers
  • Advanced control timer: 16-bit, 4 CAPCOM
  channels, 3 complementary outputs, dead-time
  insertion and flexible synchronization16-bit general purpose timer, with 3 CAPCOM
  channels (IC, OC or PWM)
  • 8-bit basic timer with 8-bit prescaler
  • Auto wake-up timer
  • Window watchdog and independent watchdog
  timers
• Communication interfaces
  • UART with clock output for synchronous
  operation, SmartCard, IrDA, LIN master mode
  • SPI interface up to 8 Mbit/s
  • I2C interface up to 400 kbit/s
• Analog to digital converter (ADC)
  • 10-bit, ±1 LSB ADC with up to 5 multiplexed
  channels, scan mode and analog watchdog
• I/Os
  • Up to 28 I/Os on a 32-pin package including
  21 high sink outputs
  • Highly robust I/O design, immune against
  current injection
